[Motorized] X-Axis, Linear Ball Slide

Click this image to zoom it.Nhấp vào hình ảnh này để phóng to.

Move the mouse over or click the image to zoom

Brand :

MISUMI

Part Number :

XMSG413-LA5-C-N

XMSG413-LA5-D-N

XMSG413-LA5-E-N

XMSG413-LA24-C-N

XMSG413-LA24-D-N

XMSG413-LA24-E-N

XMSG413-LB5-C-N

XMSG413-LB5-D-N

XMSG413-LB5-E-N

XMSG413-LB24-C-N

XMSG413-LB24-D-N

XMSG413-LB24-E-N

XMSG413-LC5-C-N

XMSG413-LC5-D-N

XMSG413-LC5-E-N

XMSG413-LC24-C-N

XMSG413-LC24-D-N

XMSG413-LC24-E-N

XMSG413-RA5-C-N

XMSG413-RA5-D-N

XMSG413-LA5-C-N

Order Qty :
Total Price :

---
Days to ship :

---

Select part number to Order Now/ Add to Cart

CAD Download

(i)
Caution

thận trọng

Please confirm the suitable power supply for each motor option.
5-Phase Stepping Motor with Brake (MA) works with single-phase AC100-120V.
α-Step Motor (PA) works with DC24V.
AC Servo Motor (U) works with single-phase or three-phase AC200-230V.
Delivery times for some of our products may be delayed as national government authorities have imposed limit of capacity at our production sites.

Product Description

MiSUMi C-VALUE

We have more cost competitive item

"X-Axis Motorized Positioning Stages"
Saving up to 70% vs "[Motorized] X-Axis, Linear Ball Slide"

[Motorized] X-Axis, Linear Ball Slide:Related Image

[ M ] Material: SUS440C Equivalent
[ S ] Surface Treatment: Electroless Nickel Plating
[ A ] Accessory: XMSG413/513/430/530: SCB3-8, 4 pcs.
XMSG615/715/650/750: SCB4-8, 4 pcs.

Specifications

Part Number	−	Sensor	−	Motor	−	Cable
XMSG413	−	LA5	−	C	−	N

Part Number		Sensor			Motor	Cable	Mechanical Standards			Accuracy Standards
Type	No.	Cover Position	Logic	Voltage (V)			Stage Surface (mm)	Travel Distance (mm)	Weight^*3 (kg)	Unidirectional Positioning Accuracy (for a single axis stage horizontally placed)	Moment Rigidity ("/N•cm)			Pitching	Yawing
											Pitching	Yawing	Rolling
XMSG	413	Ｌ (Standard) R (Reversed)	A (All N.C.) B (All N.O.) C (Limit Switches are N.C; Home Sensor is N.O.)	5^＊¹ 24^＊¹	C(Standard) D(High Torque)) E(High Resolution) MA^＊² (With Electromagnetic Brake) PA^＊² (α- Step) UA^＊² (Servo Motor)	N(Cable not included (separately sold)) M^＊² (For Motor with Electromagnetic Brake) P^＊² (For α- Step) U^＊² (For Servo Motor) For combination of motors and cables, see the table below.	40×40	13	0.5	6μm or Less	0.22	0.17	0.12	15'' or less	10'' or less
	513						50×50		0.6		0.14	0.1	0.06
	615						60×60	15	0.7		0.08	0.07	0.03
	715						70×70		0.9		0.03	0.03	0.01
	430						40×60	30	0.6	12μm or Less	0.24	0.18	0.26	20'' or less	15'' or less
	530						50×70		0.8		0.12	0.13	0.1
	650						60×100	50	1.1		0.05	0.05	0.05
	750						70×110		1.2		0.03	0.03	0.03

*1 24VDC sensors cannot be operated from the MSCTL102/112 controller. When selecting 5V for sensor voltage, applying over 5V voltage will cause breakage.
*2 For motor options MA and PA, the driver is included in the set. For motor option UA, the amp is included in the set. With motor option MA, only cable option M is selectable. With motor option PA, only cable option P is selectable. With motor option UA, only cable option U is selectable. In all three cases, cable option N (no cable) is not selectable.
*3 The value is for C Type of Motor.

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.

Loading...Tải…

: 30; 45; 60

Part Number
XMSG413-LA5-C-N
XMSG413-LA5-D-N
XMSG413-LA5-E-N
XMSG413-LA24-C-N
XMSG413-LA24-D-N
XMSG413-LA24-E-N
XMSG413-LB5-C-N
XMSG413-LB5-D-N
XMSG413-LB5-E-N
XMSG413-LB24-C-N
XMSG413-LB24-D-N
XMSG413-LB24-E-N
XMSG413-LC5-C-N
XMSG413-LC5-D-N
XMSG413-LC5-E-N
XMSG413-LC24-C-N
XMSG413-LC24-D-N
XMSG413-LC24-E-N
XMSG413-RA5-C-N
XMSG413-RA5-D-N
XMSG413-RA5-E-N
XMSG413-RA24-C-N
XMSG413-RA24-D-N
XMSG413-RA24-E-N
XMSG413-RB5-C-N
XMSG413-RB5-D-N
XMSG413-RB5-E-N
XMSG413-RB24-C-N
XMSG413-RB24-D-N
XMSG413-RB24-E-N
XMSG413-RC5-C-N
XMSG413-RC5-D-N
XMSG413-RC5-E-N
XMSG413-RC24-C-N
XMSG413-RC24-D-N
XMSG413-RC24-E-N
XMSG430-LA5-C-N
XMSG430-LA5-D-N
XMSG430-LA5-E-N
XMSG430-LA24-C-N
XMSG430-LA24-D-N
XMSG430-LA24-E-N
XMSG430-LB5-C-N
XMSG430-LB5-D-N
XMSG430-LB5-E-N
XMSG430-LB24-C-N
XMSG430-LB24-D-N
XMSG430-LB24-E-N
XMSG430-LC5-C-N
XMSG430-LC5-D-N
XMSG430-LC5-E-N
XMSG430-LC24-C-N
XMSG430-LC24-D-N
XMSG430-LC24-E-N
XMSG430-RA5-C-N
XMSG430-RA5-D-N
XMSG430-RA5-E-N
XMSG430-RA24-C-N
XMSG430-RA24-D-N
XMSG430-RA24-E-N

Price	Minimum Order Qty.	Days to ShipSố ngày giao hàng	RoHS	Motor, Motor Characteristics	Resolution (µm)	Table Length (mm)	Table Width (mm)	Stroke (X Distance) (mm)	Maximum Speed (mm/sec)	Positioning Accuracy (µm)	Table Straightness (µm)	Moment Rigidity (Pitching) ("/N•cm)	Moment Rigidity (Yawing) ("/N•cm)	Moment Rigidity (Rolling) ("/N•cm)	Sensor
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	LA5
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	LA5
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	LA5
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	LA24
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	LA24
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	LA24
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	LB5
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	LB5
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	LB5
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	LB24
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	LB24
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	LB24
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	LC5
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	LC5
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	LC5
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	LC24
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	LC24
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	LC24
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	RA5
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	RA5
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	RA5
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	RA24
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	RA24
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	RA24
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	RB5
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	RB5
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	RB5
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	RB24
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	RB24
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	RB24
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	RC5
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	RC5
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	RC5
28,528,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	40	40	13	10	6	1	0.22	0.17	0.12	RC24
29,625,750 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	40	40	13	15	6	1	0.22	0.17	0.12	RC24
28,894,250 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	40	40	13	12.5	6	1	0.22	0.17	0.12	RC24
33,995,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	60	40	30	10	12	2	0.24	0.18	0.26	LA5
35,112,000 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	60	40	30	15	12	2	0.24	0.18	0.26	LA5
34,380,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	60	40	30	12.5	12	2	0.24	0.18	0.26	LA5
33,995,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	60	40	30	10	12	2	0.24	0.18	0.26	LA24
35,112,000 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	60	40	30	15	12	2	0.24	0.18	0.26	LA24
34,380,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	60	40	30	12.5	12	2	0.24	0.18	0.26	LA24
33,995,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	60	40	30	10	12	2	0.24	0.18	0.26	LB5
35,112,000 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	60	40	30	15	12	2	0.24	0.18	0.26	LB5
34,380,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	60	40	30	12.5	12	2	0.24	0.18	0.26	LB5
33,995,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	60	40	30	10	12	2	0.24	0.18	0.26	LB24
35,112,000 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	60	40	30	15	12	2	0.24	0.18	0.26	LB24
34,380,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	60	40	30	12.5	12	2	0.24	0.18	0.26	LB24
33,995,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	60	40	30	10	12	2	0.24	0.18	0.26	LC5
35,112,000 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	60	40	30	15	12	2	0.24	0.18	0.26	LC5
34,380,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	60	40	30	12.5	12	2	0.24	0.18	0.26	LC5
33,995,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	60	40	30	10	12	2	0.24	0.18	0.26	LC24
35,112,000 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	60	40	30	15	12	2	0.24	0.18	0.26	LC24
34,380,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	60	40	30	12.5	12	2	0.24	0.18	0.26	LC24
33,995,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	60	40	30	10	12	2	0.24	0.18	0.26	RA5
35,112,000 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	60	40	30	15	12	2	0.24	0.18	0.26	RA5
34,380,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	60	40	30	12.5	12	2	0.24	0.18	0.26	RA5
33,995,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor	2µm	60	40	30	10	12	2	0.24	0.18	0.26	RA24
35,112,000 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Torque	2µm	60	40	30	15	12	2	0.24	0.18	0.26	RA24
34,380,500 VND	1 Piece(s)	8 Day(s) or more	10	5-Phase Stepping Motor - High Resolution	1µm	60	40	30	12.5	12	2	0.24	0.18	0.26	RA24

Loading...Tải…

More Information

■Motor/Cable Application Table

Motor	Cable
C,F,G	N (Not Provided)
MA	M
PA	P
UA	U

For the cable for C, F or G, see MSCB_on P.1-1735-95

■Max. speed

Motor	(mm/sec)	Motor	(mm/sec)
C	10	MA	15
F	25	PA	35
G	20	UA	50

Note that the speed and positioning time will vary depending on the usage conditions.
The values shown here are MISUMI’s reference values. Operation at these values is not guaranteed.
■Common Specifications

Feed Screw	Ball Screw Ø6, Lead 1
Guide	Linear Ball Guide
Resolution^*1	2μm/Pulse(Full) 1μm/Pulse(Half)
Straightness	1μm or less(No.413〜715) 2μm or less(No.430〜750)
Positioning Repeatability	Within ±0.5μm
Load Capacity^*2	98N
Lost Motion	1μm or less
Backlash	0.5μm or less
Parallelism	15μm or less

*1 Stage travel per one pulse.
*2 The load capacity when using Z-Axis (vertical) configuration declines to 49N.

■When Recommended Homing Method for MSCTL102/112(>> Click here) is used

Product TOP

Basic InformationThông tin cơ bản

Type	X-Axis Motorized Stage	Material	SUS440C	Guide	Linear Ball Guide
Table Feeding Method	Ball Screw	Table Height(mm)	20	Surface Treatment	无电解镀镍
Through Hole (Table Center Hole)	Not Provided	Load Capacity (Range)(N)	50.1~100	Load Capacity(N)	98
Table Parallelism(µm)	15	Sensor	Limit + Home + Near Home	Cable	No cable (sold separately)

The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..

Top of the page

About MISUMIVề Misumi

About this WebsiteVề trang Web này

Useful ToolsCác công cụ hữu ích

Customer ServiceDịch vụ chăm sóc khách hàng

MISUMI Contact Monday to Saturday: 8:00 am - 5:00 pm Order cut off time is 5:00 pm Thứ 2 đến Thứ 7: 8 giờ sáng đến 5 giờ chiều Hạn chót đặt hàng là 5 giờ chiều

Tel:Số điện thoại:0222-361-1555
Fax:Số Fax:0222-361-2555
InquiryYêu cầu

MISUMI APP

Install MISUMI APP

TALK

TALK ID : Misumi_vn

MISUMI Vietnam Company Limited, Legal Representative: Tomohiro Watanabe,
phone: 0222-361-1555, e-mail: cs@misumi.com.vn, Enterprise Code: 0107514576,
Date of Issuance: 22 July 2016, Place of Issuance: Bac Ninh, Business Certificate No. 6573041568-KD dated 27 September 2016 issued by the People's Committee of Bac Ninh

Công ty TNHH MISUMI Việt Nam, Đại diện theo pháp luật: Tomohiro Watanabe,
Điện thoại: 0222-361-1555, e-mail: cs@misumi.com.vn, Mã số doanh nghiệp: 0107514576,
ngày cấp 22/7/2016, nơi cấp: Bắc Ninh, Giấy phép kinh doanh số: 6573041568-KD ngày cấp 27/9/2016 bởi UBND tỉnh Bắc Ninh

ものづくりの、明日を支える。MISUMI-VONA 生産材コマース ものづくりの、明日を支える。MISUMI-VONA 生産材コマース

Search by Category / Brand Tìm theo danh mục, nhãn hiệu

Search by Category Tìm theo danh mục

How can we improve?

ConfigureTạo

Specification/DimensionsĐặc điểm kỹ thuật / Kích thướcĐặc điểm kỹ thuật / Kích thước

Motor, Motor Characteristics

Resolution(µm)

Table Length(mm)

Table Width(mm)

Stroke (X Distance)(mm)

Positioning Accuracy(µm)

Sensor

type

CADCAD

Days to ShipSố ngày giao hàng

Specify AlterationsChỉ định thay đổi

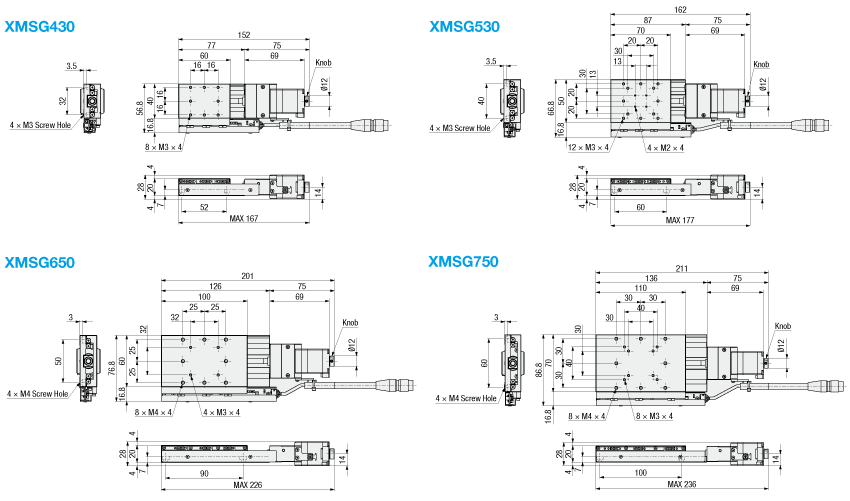

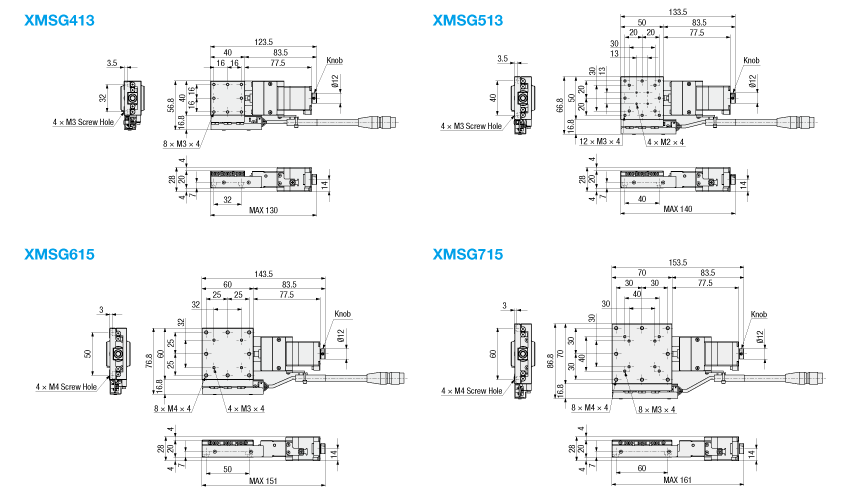

[Motorized] X-Axis, Linear Ball Slide

Copy Part Number URL to Clipboard

(i) Caution thận trọng

Product Description

Specifications

Part Number

More Information

Basic InformationThông tin cơ bản

About MISUMIVề Misumi

About this WebsiteVề trang Web này

Useful ToolsCác công cụ hữu ích

Customer ServiceDịch vụ chăm sóc khách hàng

MISUMI Contact Monday to Saturday: 8:00 am - 5:00 pm Order cut off time is 5:00 pm Thứ 2 đến Thứ 7: 8 giờ sáng đến 5 giờ chiều Hạn chót đặt hàng là 5 giờ chiều

ものづくりの、明日を支える。MISUMI-VONA 生産材コマースものづくりの、明日を支える。MISUMI-VONA 生産材コマース

(i)
Caution

thận trọng
