Swivel Joints/90 Deg. Elbow/PT Threaded/PT Tapped, Economy series
:
MISUMI
- Only part numbers that can be generated via the filter(Configurator bar on the left) are currently available.

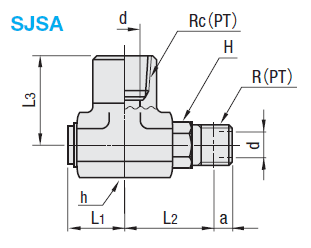

[Features]·This 90° elbow type swivel joint can rotate 360°.
[ ! ] Please note that some sizes listed in the specification table are not yet available.
Part numbers generated using the configuration bar on the left side of the page are valid.
- Features
Capable of slow and reciprocating rotary motions.
Suited for use in connecting fixed pipes and hydraulic hoses.
Part numbers generated using the configuration bar on the left side of the page are valid.
· Materials
| Material | Surface Treatment |
| S45C | Trivalent Chromate Plating |
- Features
Capable of slow and reciprocating rotary motions.
Suited for use in connecting fixed pipes and hydraulic hoses.
More Information
[Specification)- Normal Pressure : 20.6MPa=~210kgf/cm² or Less - Applicable Fluid: Oil (−20°C~95°C)
- Oscillation Velocity:360° - Oscillation Velocity: 25 Cycles/min. (For Oscillation Angle 110°)
