[Clean & Pack]Manifold - Pneumatic, 2 Circuits, WBMRAF Series

MISUMI

Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.

Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.

■Part Number for Clean & Pack Products

·Degreasing (Anti-rust single packing)	: Part Number SL-□□
·Precision cleaning (Degassing double packing)	: Part Number SH-□□
·Electrolytic polishing + precision cleaning (Degassing double packing)	: Part Number SHD-□□

Product Part Number	Cleaning Method	Packaging Type	Effects Compared to Uncleaned Product	Environment (Standard)	Process
SL-□□	Degreasing	Anti-rust packing	Oil removal	General environment	Regular assembly process
					Post battery assembly process
SH-□□	Precision cleaning	Degassing double packing	Oil removal Dust removal	Clean environment (Class 10 to 1,000)	Battery assembly process
					LCD-related post assembly process
					In-vehicle camera assembly process
SHD-□□	Electrolytic polishing + precision cleaning	Degassing double packing	Oil removal Dust removal Outgas reduction	Vacuum environment Clean environment (Class 10 to 1,000)	Pre-semiconductor process
					Liquid crystal deposition process
					Pre-OLED process

■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.

A 2-circuit type manifold. G (PF) thread machining can also be specified.

Pneumatic

[ ! ] Dimensions in ( ) are for Pneumatic Type.

Thread
JIS B0203 Rc (PT) JIS B0202 G (PF): ISO 228-1 Interchangeable
ANSI/ASME B.I.20.1－1983 (NPT)

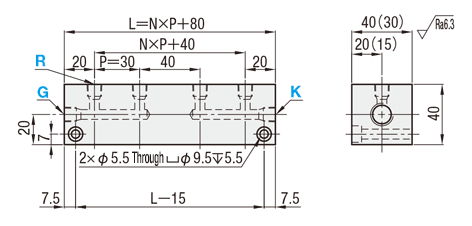

* Drawing for 4 Circuit Type is selected. The total number of R, G and K threads is 6.

Type		[M] Material	Max. Operating Pressure	Cleaning Method
Standard Type	G Screw Type			Cleaning Method	Cleaning Environment	Packaging Type	Packing Environment
SL-WBMRAF	SL-G-WBMRAF	Aluminum Alloy	1 MPa ≈ 10 kgf/cm² or less	Degreasing	General environment	Anti-rust packing	General environment
SH-WBMRAF	SH-G-WBMRAF			Precision cleaning	Class 1,000	Degassing double packing	Class 10
SHD-WBMRAF	SHD-G-WBMRAF			Electrolytic polishing + precision cleaning

[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the

specification table.
