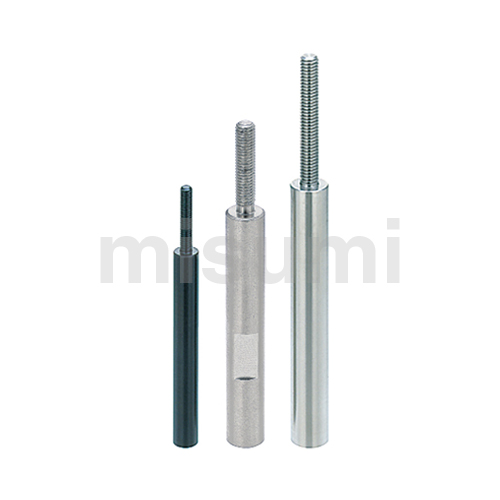

Round Posts One End Threaded, One End Tapped, Length and Thread Length Configurable

Round post is a common processing component, with the functions of connection, fastening, support, separation and so on, mainly used in various fastening and supporting mechanisms.
At the same time, there are a variety of materials to choose from, allowing it to be widely used in automation, electronics and electrical appliances, medical treatment, communication and other fields.

Type		Material	Surface Treatment	D(mm)	L(mm)
Standard	With Wrench Slot Type
E-NETH	E-NETHS	General Structural Steel or Carbon Steel	-	5 to 50	15 to 1000
E-ETKH	E-ETKHS		Black Oxide
E-PETH	E-PETHS		Electroless Nickel Plating
E-SETH	E-SETHS	Stainless Steel	-

If there are requirements for rust prevention, give priority to products with surface treatment of electroless nickel plating and those made of stainless steel. Please click Rust Prevention Methods
Products made of general structural steel or carbon steel are coated with anti-rust oil.
Due to female thread processing, the D part of the female thread may sometimes be slightly raised.
There may be grinding gloss marks near the wrench slot on products without surface treatment.
SC ≤ L-ℓ1

■ One end male thread, one end female thread, thread length specified

Part Number		Can be specified down to 0.5mm increments			M (Coarse) Male Thread Selection											N (Coarse Thread) Female Thread Selection											W	ℓ1	A
Type	D	L	F	SC With wrench slot only
Male Thread on One End Female Thread on One End Thread Length Specification (Standard) General Structural Steel or Carbon Steel E-NETH E-ETKH E-PETH Stainless Steel E-SETH (With Wrench Slot Type) General Structural Steel or Carbon Steel E-NETHS E-ETKHS E-PETHS Stainless Steel E-SETHS	6	15 to 100	5 to  30	0 to  92		3	4	5									3	4									5	8	1.0
	8	20 to 200	8 to  40	0 to 192		3	4	5	6								3	4	5								7		1.6
	10	20 to 400	8 to  45	0 to 392		3	4	5	6	8							3	4	5	6							8		2.0
	12	25 to 500	10 to 55	0 to 490			4	5	6	8	10							4	5	6	8						10	10	2.5
	15	30 to 600	12 to 60	0 to 590				5	6	8	10	12							5	6	8	10					13		3.0
	20	40 to 600	15 to  75	0 to 590				5	6	8	10	12	16						5	6	8	10	12				17		3.5
	25	55 to 700	20 to 80	0 to 690				5	6	8	10	12	16	20					5	6	8	10	12	16			22		4.0
	30	65 to 800	25 to 90	0 to 785				5	6	8	10	12	16	20	24				5	6	8	10	12	16	20		27	15	5.0
	*35	80 to 900	30 to 100	0 to 885					6	8	10	12	16	20	24					6	8	10	12	16	20	24	30	15	6.0
	*40	80 to 1000	35 to 110	0 to 980						8	10	12	16	20	24						8	10	12	16	20	24	36	20	6.0
	*50	80 to 1000	40 to 120	0 to 980							10	12	16	20	24							10	12	16	20	24	41	20	6.0

When L—SC ≤ N × 3, W—N ≥ 2 must be satisfied. L ≥ N × 3+2 *D ≥ 35 Only applicable for E-N□□□□·E-E□□□□·E-P□□□□.

L size tolerance is as shown below.
L15–300 ±0.2
L300.5–600 ±0.3
L600.5–1000 ±0.4

Feature 1: the length and thread of the round post can be freely specified to accommodate different operating environments.
Feature 2: 2 types of materials to choose from: general structural steel, stainless steel.
Feature 3: Two types of surface treatments available: black oxide (ferroferric oxide protective film) and electroless nickel plating.
Feature 4: products with surface treatment (electroless nickel plating) and material (stainless steel) for good anti-rust performance are widely used in precision equipment and dust-free environment.
Feature 5: with the main functions of connection, fastening, support and separation, it is often used in mechanisms with various frames as a connection and support component.

(1) Fastening method of post
The post is generally fastened by torque method. For bolts, fasten them within the range of fastening torque, otherwise excessive torque will cause thread fracture.
(2) Anti-rust specification selection and maintenance
. If there are requirements for anti-corrosion performance, select products with surface treatment of electroless nickel plating or those made of stainless steel when choosing general structural steel products.
General structural steel posts without surface treatment are recommended to be stored in a constant-temperature and dry environment, and regularly applied with anti-rust oil for maintenance.
