Rolled Ball Screws, Shaft Dia.50 Lead 10/20/50 Precision Grade C7
:
MISUMI
- **RoHS Compliant is available for some part numbers.
Please contact with MISUMI for detail effective date.
RoHS Compliant Product
Product Overview
1. This series of products is the C7 Rolled Ball Screw with the shaft diameter of 50 and lead of 10/20/50.
2. It is more suitable for feeding mechanisms in FA automation equipment.
3. The screw shaft end is machined according to standard specifications. If the shaft end requires alteration, it should be specified according to the catalog.
2. It is more suitable for feeding mechanisms in FA automation equipment.
3. The screw shaft end is machined according to standard specifications. If the shaft end requires alteration, it should be specified according to the catalog.
Dimensional Drawing
| Accuracy Grade | Screw Dia. | Lead | Screw Shaft | Nut | ||||
| Material | Hardness | Surface Treatment | Material | Hardness | Surface Treatment | |||
| C7 | 50 | 10·20·50 | Equivalent to S55C | Induction hardening 58～62HRC | - | Equivalent to SCM420 | Carburized 58～62HRC | - |
Specification Table
| Part Number |  Shaft overall length L (1mm increments) | Y | Number of Circuits | Basic Load Rating | Axial Clearance | Twisting Direction | |||
 Type |  Screw Shaft O.D. |  Lead | C (Dynamic) kN | C (Static) kN | |||||
| E-TBS | 50 | 10 | 400~2000 | L-171 | 4 turns | 29.9 | 98.1 | 0.2 or Less | Right |
| 20 | 3.8 turns | 28.7 | 92.4 | ||||||
| 50 | 1.8 turns | 14.7 | 43.7 | ||||||
| * The Y dimension must be larger than the full length of the nut | kgf＝N×0.101972 | ||||||||
Alterations
 | Part Number (Type·Screw shaft outer diameter·Lead) | － | L | － | (NC·KC…etc.) |
E-TBS5010 | － | 400 | － | KC10 |
■Support side
Only one of ①, ③, ④ and ⑤ can be selected.
Only one of ⑦, ⑧ and ⑨ can be selected.
Only one of ⑩ and ⑪ can be selected.
When ⑫ and ⑬ are specified simultaneously, no male thread will be machined regardless of the value specified for U in ⑫.
When specifying any alteration, the nut motion range (Y dimension) may become shorter. Please make sure that the nut motion range is greater than the full length of the nut.
| Alterations | Code | Spec. |
① No Machining on Support Side Shaft End | NC | No machining added on the support side shaft end. Specifying Sample NC |
② Ball Nut Orientation Reversed | RLC | Changes the nut direction. Specifying Sample RLC |
③ No machining of the support side shaft-end retaining ring grooves | RNC | No machining of the support side shaft-end retaining ring grooves. Specifying Sample RNC |
④ Change the length of the support side shaft end | FC | Change the length of the support side shaft end. 23≤FC≤90 FC=1mm increments Ordering Code FC30 |
⑤Change the machining content of the support side | GC | Change the machining content of the support side. 5≤G≤90 Choose Q from 15, 20, 25, 30 and 40 G＝1mm increments Ordering Code GC－Q25－G30 |
Only one of ①, ③, ④ and ⑤ can be selected.Only one of ⑦, ⑧ and ⑨ can be selected.Only one of ⑩ and ⑪ can be selected.When ⑫ and ⑬ are specified simultaneously, no male thread will be machined regardless of the value specified for U in ⑫.When specifying any alteration, the nut motion range (Y dimension) may become shorter. Please make sure that the nut motion range is greater than the full length of the nut.■Fixed side
| Alterations | Code | Spec. |
⑥ Machining fixed side wrench slots | SZC | Adds wrench flats on the fixed side shaft end. Specifying Sample SZC Move the nut to the wrench slot,otherwise the ball will fall off. The nut may not be moved within the Incomplete Hardened Area.Note that when selecting. |
⑦ Machining fixed side shaft end keyways | KC | Adds a keyway on the fixed side shaft end. When specified simultaneously with 5≤KC≤49 and ⑪, 5≤KC≤F－1 KC=1mm increments Ordering Code KC10 |
⑧ Machining fixed side shaft end keyways | KLC | The machining position of keyways at fixed side shaft end can be specified. (Keyway size is the same as KC.) When specified simultaneously with 5≤K≤48 K＋S≤49 and ⑪, 5≤K≤89 K＋S≤F－1 K, S＝1mm increments Ordering Code KLC－K5－S3 |
⑨ Machining fixed side shaft end plane | SC | Adds a flat on the fixed side shaft end. When specified simultaneously with 5≤SC≤49 and ⑪, 5≤SC≤F－1 SC=1mm increments Ordering Code SC10 |
⑩ No machining of small steps on the fixed side | NF | No machining of small steps on the fixed side Ordering Code NF |
⑪ Change dimensions of small steps on the fixed side | FP | Change dimensions of small steps on the fixed side 50≤F≤90 20≤P≤35 F, P＝1mm increments Ordering Code FP－F60－P25 |
⑫ Change dimensions of big steps on the fixed side | EU | Change dimensions of big steps on the fixed side 16≤E≤200 16≤U≤E－3 E, U＝1mm increments Ordering Code EU－E100－U30 |
⑬No machining of big steps male thread on the fixed side | NU | No machining of big steps male thread on the fixed side Ordering Code NU |
■Detailed dimension of alteration KC··KLC keyway
| Shaft Dia. | b | t | ||
| Reference Dimension | Tolerance (N9) | Reference Dimension | Tolerance | |
| 6~7 | 2 | -0.004 -0.029 | 1.2 | +0.1 0 |
| 8~10 | 3 | 1.8 | ||
| 11~12 | 4 | 0 -0.03 | 2.5 | |
| 13~17 | 5 | 3.0 | ||
| 18~22 | 6 | 3.5 | ||
| 23~30 | 8 | 0 -0.036 | 4.0 | +0.2 0 |
| 31~35 | 10 | 5.0 | ||
■Screw shaft runout tolerance
| Type | Screw shaft outer diameter | Runout tolerance G (Maximum) | Incomplete quenching range (ℓ) | |||||||
| 316~400 | 401~500 | 501~630 | 631~800 | 801~1000 | 1001~1250 | 1251~1600 | 1601~2000 | |||
| E-TBS | 50 | 0.130 | 0.160 | 0.190 | 0.230 | 0.300 | 0.380 | 0.500 | 0.690 | 30 |
Ball Screw Runing Noise Level

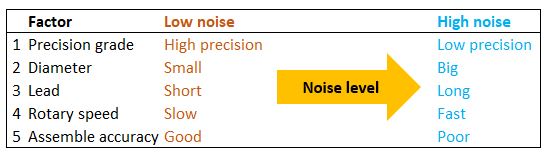

Ball screw noise level is affected by several important factors:
The figures below show the noise levels of ball screws with different specifications.
Note:
- These test results are for reference only and do not represent all ball screw specifications.
- Actual noise levels may vary depending on multiple factors.
Misumi C7 grade ball screws have controlled outgoing noise levels and guarantee less than 70 dB at a rotational speed of 1500 RPM.
(Noise measured at a distance of 1 meter from the ball screw)
Product Features
1. Shipping within 5 days.
2. Drawing-based machining is no longer required, saving the time for drawing.
3. The total length of screw shaft can be specified in 1 mm increments. With abundant shaft end specifications, it is possible to specify alterations for different applications.
2. Drawing-based machining is no longer required, saving the time for drawing.
3. The total length of screw shaft can be specified in 1 mm increments. With abundant shaft end specifications, it is possible to specify alterations for different applications.
Example of Use
Precautions
■ Selection and Precautions for Use
● The noise value of the screw after assembly is not guaranteed.
● Although lithium soap-based grease has been applied at the factory, it is required to apply new grease every 2~3 months as standard after receiving the goods, otherwise the normal use will be affected.
●In operation, if there is too much noise or sharp and harsh sound, please make sure that the installation accuracy of the screw and the specifications of peripheral components such as motors and couplings are appropriate.
●Do not let the nut exceed the movement range of the ball screw nut, or screw out of the screw shaft, otherwise the ball will fall off and the ball cycling parts will be damaged.
● Ball screws and nuts placed with an inclination may fall due to weight. Please be careful.
● This product is a machined type, so there will be knife patterns and color difference in its appearance. Small scratches or color changes without affecting the use and main function are of a normal phenomenon. Please feel free to use.
■ Precautions of the ball screw and peripheral parts design and assembly
The ball screw is a component that only bears axial load. If it is subjected to radial load or moment load, poor sliding, vibration or abnormal noise may occur, shortening its service life. The reason that the ball screw bears radial load and moment load is the axis deviation and parallelism error of the surrounding parts. Therefore, it is necessary to correctly design and assemble the peripheral parts of the ball screw to prevent errors.
● Axis deviation of ball screw and support unit (Fig. 1)
- Axis deviation is the deviation of the ball screw fixed by the fixed side support unit and the bearing of the supporting side support unit.
-The allowable value of the axis deviation is 20μ or less (reference value)
●Parallelism between ball screw and linear guide (Diagram 2)
- Parallelism error refers to the inclination of the ball screw in the up-down or left-right direction with respect to the reference of the linear guide.
-The allowable value of inclination is below 1/2000 (Diagram 3)
●Precautions of assembly
If you notice abnormal noises during the operation of the ball screw or jamming during movement after assembly, please loosen the connections of the parts before proceeding. Adjust and reassemble after moving smoothly.
- Error in the left and right direction of the support unit (Fig. 1)
- Parallel error of linear guide and ball screw (Fig. 2)
- Fixing of workbench and nut bracket
- Fixing of ball screw nut and nut bracket
● The noise value of the screw after assembly is not guaranteed.
● Although lithium soap-based grease has been applied at the factory, it is required to apply new grease every 2~3 months as standard after receiving the goods, otherwise the normal use will be affected.
●In operation, if there is too much noise or sharp and harsh sound, please make sure that the installation accuracy of the screw and the specifications of peripheral components such as motors and couplings are appropriate.
●Do not let the nut exceed the movement range of the ball screw nut, or screw out of the screw shaft, otherwise the ball will fall off and the ball cycling parts will be damaged.
● Ball screws and nuts placed with an inclination may fall due to weight. Please be careful.
● This product is a machined type, so there will be knife patterns and color difference in its appearance. Small scratches or color changes without affecting the use and main function are of a normal phenomenon. Please feel free to use.
■ Precautions of the ball screw and peripheral parts design and assembly
The ball screw is a component that only bears axial load. If it is subjected to radial load or moment load, poor sliding, vibration or abnormal noise may occur, shortening its service life. The reason that the ball screw bears radial load and moment load is the axis deviation and parallelism error of the surrounding parts. Therefore, it is necessary to correctly design and assemble the peripheral parts of the ball screw to prevent errors.
● Axis deviation of ball screw and support unit (Fig. 1)
- Axis deviation is the deviation of the ball screw fixed by the fixed side support unit and the bearing of the supporting side support unit.
-The allowable value of the axis deviation is 20μ or less (reference value)
●Parallelism between ball screw and linear guide (Diagram 2)
- Parallelism error refers to the inclination of the ball screw in the up-down or left-right direction with respect to the reference of the linear guide.
-The allowable value of inclination is below 1/2000 (Diagram 3)
●Precautions of assembly
If you notice abnormal noises during the operation of the ball screw or jamming during movement after assembly, please loosen the connections of the parts before proceeding. Adjust and reassemble after moving smoothly.
- Error in the left and right direction of the support unit (Fig. 1)
- Parallel error of linear guide and ball screw (Fig. 2)
- Fixing of workbench and nut bracket
- Fixing of ball screw nut and nut bracket
| ·Removal of nut is prohibited | ·No impact on the nut | ·Be careful of falling due to weight |
 |  |  |
| ·Checking for reverse action | ·Pay attention to intrusion of foreign objects | ·Nut overstroke is prohibited |
 |  |  |
