Product DetailProduct Description
This is an economy item, The price is cheaper than the MISUMI standard product.
Product Overview
・Flexible Shaft Couplings is composed of 2 metal jaw disks in the coupling part and 1 elastomer resin adjustment ring.
・The resin adjustment ring can alleviate the inertial load impact during start and stop.
・Flexible Shaft Couplings is Easy to disassemble and assemble.
・Recommended for stepper motors and general-purpose motors.
・The resin adjustment ring can alleviate the inertial load impact during start and stop.
・Flexible Shaft Couplings is Easy to disassemble and assemble.
・Recommended for stepper motors and general-purpose motors.
Dimensional Drawing
E-LMPJ
・Material table
| Part |  Material |  Surface Treatment |  Accessory |
| Hub | Aluminum Alloy | Clear Anodized | Set Screw |
| Spacer | Polyurethane | - |
Specification Table
Please follow the selection steps
～
to select the part no.
*L dimension was updated in March 2024.
■Characteristic Values
～
to select the part no.Part No.(Type· DL) | - |  d1 | - | d2 |
| E-LMPJ14L22 E-LMPJ30L35 E-LMPJ30L40 | - - - | 5 7 7 | - - - | 6 8 10 |
| Part No. | d1、d2 Shaft Hole Dia.(d1≤d2) | LF | LP | F | |||||||||||||||||||||||||||||||||
 Type |  D | L | |||||||||||||||||||||||||||||||||||
| E-LMPJ | 14 | L22 | 3 | 4 | 5 | 6 | 6.35 | 7 | 8 | ||||||||||||||||||||||||||||
| 20 | L25 | 4 | 5 | 6 | 6.35 | 7 | 8 | 9 | 9.525 | 10 | |||||||||||||||||||||||||||
| 20 | L30 | 4 | 5 | 6 | 6.35 | 7 | 8 | 9 | 9.525 | 10 | 19.1 | 8.6 | 5.3 | ||||||||||||||||||||||||
| 25 | L30 | 5 | 6 | 6.35 | 7 | 8 | 9 | 9.525 | 10 | 11 | 12 | 12.7 | 13 | 14 | |||||||||||||||||||||||
| 25 | L34* | 5 | 6 | 6.35 | 7 | 8 | 9 | 9.525 | 10 | 11 | 12 | 12.7 | 13 | 14 | |||||||||||||||||||||||
| 30 | L35 | 5 | 6 | 6.35 | 7 | 8 | 9 | 9.525 | 10 | 11 | 12 | 12.7 | 13 | 14 | 15 | 16 | |||||||||||||||||||||
| 30 | L40 | 5 | 6 | 6.35 | 7 | 8 | 9 | 9.525 | 10 | 11 | 12 | 12.7 | 13 | 14 | 15 | 16 | |||||||||||||||||||||
| 35 | L50 | 8 | 9 | 9.525 | 10 | 11 | 12 | 12.7 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | |||||||||||||||||||||
| 40 | L40 | 8 | 9 | 9.525 | 10 | 11 | 12 | 12.7 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 22 | ||||||||||||||||||||
| 40 | L50 | 8 | 9 | 9.525 | 10 | 11 | 12 | 12.7 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 22 | ||||||||||||||||||||
| 40 | L55 | 8 | 9 | 9.525 | 10 | 11 | 12 | 12.7 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 22 | ||||||||||||||||||||
| 40 | L66 | 8 | 9 | 9.525 | 10 | 11 | 12 | 12.7 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 22 | ||||||||||||||||||||
| 55 | L78 | 12 | 12.7 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 22 | 24 | 25 | 28 | 30 | |||||||||||||||||||||
| 65 | L90 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 22 | 24 | 25 | 28 | 30 | 32 | 35 | 38 | |||||||||||||||||||||
| 80 | L114 | 19 | 20 | 22 | 24 | 25 | 28 | 30 | 32 | 35 | 38 | 40 | 42 | 45 | |||||||||||||||||||||||
| 95 | L126 | 20 | 22 | 24 | 25 | 28 | 30 | 32 | 35 | 38 | 40 | 42 | 45 | 50 | |||||||||||||||||||||||
| 105 | L140 | 20 | 22 | 24 | 25 | 28 | 30 | 32 | 35 | 38 | 40 | 42 | 45 | 50 | 55 | 60 | |||||||||||||||||||||
| 120 | L160* | 25 | 28 | 30 | 32 | 35 | 38 | 40 | 42 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | ||||||||||||||||||||
*L dimension was updated in March 2024.■Characteristic Values
| Part No. | F | Set Screw | Rated Torque (N·m) | Mass g | |||
| Type | D | L | M | Tightening Torque (N.m) | |||
| E-LMPJ | 14 | L22 | 3.8 | M2.5 | 1 | 5 | 6 |
| 20 | L25 | 5.2 | M3 | 1.5 | 9 | 15 | |
| 20 | L30 | 5.2 | 18 | ||||
| 25 | L30 | 5.8 | 3.4 | 11 | 30 | ||
| 25 | L34 | 5.8 | 35 | ||||
| 30 | L35 | 5.9 | M4 | 12.5 | 40 | ||
| 30 | L40 | 5.9 | 45 | ||||
| 35 | L50 | 6.5 | M5 | 7 | 15 | 92 | |
| 40 | L40 | 6.7 | 17 | 150 | |||
| 40 | L50 | 6.7 | 188 | ||||
| 40 | L55 | 6.7 | 206 | ||||
| 40 | L66 | 6.7 | 248 | ||||
| 55 | L78 | 11 | M6 | 14 | 60 | 350 | |
| 65 | L90 | 12.3 | M8 | 30 | 160 | 500 | |
| 80 | L114 | 17 | M10 | 30 | 325 | 1000 | |
| 95 | L126 | 20 | M10 | 30 | 450 | 1500 | |
| 105 | L140 | 20 | M10 | 48 | 580 | 2000 | |
| 120 | L135 | 25 | M12 | 48 | 690 | 2500 | |

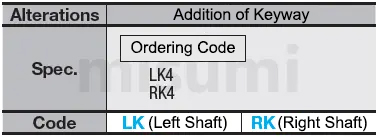

| Shaft Hole Dia. d1·d2 | b(Keyway Width) | t Keyway Depth | Keyway Nominal Dim. b X h | |
| LK | RK | |||
| 8~10 | 3 | 3 | 1.4 | 3x3 |
| 11~12 | 4 | 4 | 1.8 | 4x4 |
| 13~17 | 5 | 5 | 2.3 | 5x5 |
| 18~22 | 6 | 6 | 2.8 | 6x6 |
| 23~30 | 8 | 8 | 3.3 | 8x7 |
| 31~38 | 10 | 10 | 3.3 | 10x8 |
| 39~44 | 12 | 12 | 3.3 | 12x8 |
| 45~50 | 14 | 14 | 3.8 | 14x9 |
| 51~58 | 16 | 16 | 4.3 | 16x10 |
| 59~65 | 18 | 18 | 4.4 | 18x11 |
| 66~75 | 20 | 20 | 4.9 | 20x12 |
| 76~85 | 22 | 22 | 5.4 | 22x14 |
| 86~95 | 25 | 25 | 5.4 | 25x14 |
Product Features
The characteristics are as follows:
It has a simple structure, no lubrication required / easy to repair and inspect / maintenance-free. It can operated continuously for a long time.
Polyurethane elastic parts are wear-resistant and oil-resistant, have large load capacity, long service life, and are safe and reliable.
This product is suitable for medium and high-speed applications.
It has a simple structure, no lubrication required / easy to repair and inspect / maintenance-free. It can operated continuously for a long time.
Polyurethane elastic parts are wear-resistant and oil-resistant, have large load capacity, long service life, and are safe and reliable.
This product is suitable for medium and high-speed applications.
Precautions
■ Calibration and adjustment
1. The Flexible Shaft Couplings allows axis deviation, and transmits rotation angle and torque, but when the axis deviation exceeds the allowable value, vibration will occur or the service life will be drastically reduced. Be sure to make calibration andadjustment.
2. Axis deviation includes lateral misalignment (parallel error of two axes), angular misalignment (angular error of two axes) and axial amplitude (axial movement of shaft).
Please calibrate and adjust the shaft to ensure that the axis deviation is below the allowable value recorded in the dimension and performance table of each product.
3. The allowable value of axis deviation recorded in the dimension and performance table refers to the situation when either lateral misalignment, angular misalignment or axial amplitude occurs alone. When more than two axis deviationsoccur at the same time, the corresponding allowable values are halved respectively.
4. Axis deviation not only occurs when assembling to the device, but also is caused by vibration, thermal expansion and bearing wear in operation. Therefore, it is recommended to set the axis deviation below 1/3 of the allowable value.
1. The Flexible Shaft Couplings allows axis deviation, and transmits rotation angle and torque, but when the axis deviation exceeds the allowable value, vibration will occur or the service life will be drastically reduced. Be sure to make calibration andadjustment.
2. Axis deviation includes lateral misalignment (parallel error of two axes), angular misalignment (angular error of two axes) and axial amplitude (axial movement of shaft).
Please calibrate and adjust the shaft to ensure that the axis deviation is below the allowable value recorded in the dimension and performance table of each product.
3. The allowable value of axis deviation recorded in the dimension and performance table refers to the situation when either lateral misalignment, angular misalignment or axial amplitude occurs alone. When more than two axis deviationsoccur at the same time, the corresponding allowable values are halved respectively.
4. Axis deviation not only occurs when assembling to the device, but also is caused by vibration, thermal expansion and bearing wear in operation. Therefore, it is recommended to set the axis deviation below 1/3 of the allowable value.
Usage Method
■Mounting method
STEP1 Insert the coupling
Confirm that the clamping bolt has been unscrewed, and then remove the dust, foreign matter and oil from the shaft and coupling bore.
Then, when inserting the Flexible Shaft Couplings into the shaft, please be careful not to put the disc under excessive stress such as compression or tension.
STEP2 Use fixture to adjust
Please use fixture to adjust and fix the concentricity of the left and right hubs of the coupling with high accuracy.
STEP3 Simple lateral misalignment and angular misalignment confirmation
Under the condition of unscrewed bolts, make the Flexible Shaft Couplings slide axially and confirm its smooth movement.
Then, rotate the coupling to make sure it moves smoothly.
Lateral misalignment is not allowed for single disc type coupling, so carry out positioning securely.
STEP4 Installation
Please adjust the shaft insertion amount according to the dimension ℓ in the product catalog, and use a torque wrench to tighten with the specified torque.
＊ If the specified torque cannot be reached once, please cross fasten the left and right clamps twice or three times.
STEP1 Insert the coupling
Confirm that the clamping bolt has been unscrewed, and then remove the dust, foreign matter and oil from the shaft and coupling bore.
Then, when inserting the Flexible Shaft Couplings into the shaft, please be careful not to put the disc under excessive stress such as compression or tension.
STEP2 Use fixture to adjust
Please use fixture to adjust and fix the concentricity of the left and right hubs of the coupling with high accuracy.
STEP3 Simple lateral misalignment and angular misalignment confirmation
Under the condition of unscrewed bolts, make the Flexible Shaft Couplings slide axially and confirm its smooth movement.
Then, rotate the coupling to make sure it moves smoothly.
Lateral misalignment is not allowed for single disc type coupling, so carry out positioning securely.
Please adjust the shaft insertion amount according to the dimension ℓ in the product catalog, and use a torque wrench to tighten with the specified torque.
＊ If the specified torque cannot be reached once, please cross fasten the left and right clamps twice or three times.
Example of Use
Use example 1: motor × gear box
Use example 3: motor × encoder
Use example 2: motor × ball screw
Use example 4: motor × measuring tester
Application Industries
| Electronic & Electrical | Automotive | Lithium battery | ||
 |  |  | ||
| LCD | Smart Phones | Semiconductor | ||
 |  |  |
| Part Number |
|---|
| E-LMPJ14L22-[3,4,5,6,6.35,7,8]-[3,4,5,6,6.35,7,8] |
| E-LMPJ20L25-[4,5,6,6.35,7,8,9,9.525,10]-[4,5,6,6.35,7,8,9,9.525,10] |
| E-LMPJ20L30-[4,5,6,6.35,7,8,9,9.525,10]-[4,5,6,6.35,7,8,9,9.525,10] |
| E-LMPJ25L30-[5,6,6.35,7,8,9,9.525,10,11,12,12.7,13,14]-[5,6,6.35,7,8,9,9.525,10,11,12,12.7,13,14] |
| E-LMPJ25L34-[5,6,6.35,7,8,9,9.525,10,11,12,12.7,13,14]-[5,6,6.35,7,8,9,9.525,10,11,12,12.7,13,14] |
| E-LMPJ30L35-[5,6,6.35,7,8,9,9.525,10,11,12,12.7,13,14,15,16]-[5,6,6.35,7,8,9,9.525,10,11,12,12.7,13,14,15,16] |
| E-LMPJ30L40-[5,6,6.35,7,8,9,9.525,10,11,12,12.7,13,14,15,16]-[5,6,6.35,7,8,9,9.525,10,11,12,12.7,13,14,15,16] |
| E-LMPJ35L50-[8,9,9.525,10,11,12,12.7,13,14,15,16,17,18,19,20]-[8,9,9.525,10,11,12,12.7,13,14,15,16,17,18,19,20] |
| E-LMPJ40L40-[8,9,9.525,10,11,12,12.7,13,14,15,16,17,18,19,20,22]-[8,9,9.525,10,11,12,12.7,13,14,15,16,17,18,19,20,22] |
| E-LMPJ40L50-[8,9,9.525,10,11,12,12.7,13,14,15,16,17,18,19,20,22]-[8,9,9.525,10,11,12,12.7,13,14,15,16,17,18,19,20,22] |
| E-LMPJ40L55-[8,9,9.525,10,11,12,12.7,13,14,15,16,17,18,19,20,22]-[8,9,9.525,10,11,12,12.7,13,14,15,16,17,18,19,20,22] |
| E-LMPJ40L66-[8,9,9.525,10,11,12,12.7,13,14,15,16,17,18,19,20,22]-[8,9,9.525,10,11,12,12.7,13,14,15,16,17,18,19,20,22] |
| E-LMPJ55L78-[12,12.7,13,14,15,16,17,18,19,20,22,24,25,28,30]-[12,12.7,13,14,15,16,17,18,19,20,22,24,25,28,30] |
| E-LMPJ65L90-[14,15,16,17,18,19,20,22,24,25,28,30,32,35,38]-[14,15,16,17,18,19,20,22,24,25,28,30,32,35,38] |
| E-LMPJ80L114-[19,20,22,24,25,28,30,32,35,38,40,42,45]-[19,20,22,24,25,28,30,32,35,38,40,42,45] |
| E-LMPJ95L126-[20,22,24,25,28,30,32,35,38,40,42,45,50]-[20,22,24,25,28,30,32,35,38,40,42,45,50] |
| E-LMPJ105L140-[20,22,24,25,28,30,32,35,38,40,42,45,50,55,60]-[20,22,24,25,28,30,32,35,38,40,42,45,50,55,60] |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to ShipSố ngày giao hàng | Shaft Bore Dia.1 d1 (or d) (Ø) | Shaft Bore Dia. 2 d2 (or d) (Ø) | O.D. (Ø) | Overall Length (mm) |
|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 16 Day(s) | 3 ～ 8 | 3 ～ 8 | 14 | 22 | ||
- | 1 Piece(s) | 16 Day(s) | 4 ～ 10 | 4 ～ 10 | 20 | 25 | ||
- | 1 Piece(s) | 16 Day(s) | 4 ～ 10 | 4 ～ 10 | 20 | 30 | ||
- | 1 Piece(s) | 16 Day(s) | 5 ～ 14 | 5 ～ 14 | 25 | 30 | ||
- | 1 Piece(s) | 16 Day(s) | 5 ～ 14 | 5 ～ 14 | 25 | 34 | ||
- | 1 Piece(s) | 16 Day(s) | 5 ～ 16 | 5 ～ 16 | 30 | 35 | ||
- | 1 Piece(s) | 16 Day(s) | 5 ～ 16 | 5 ～ 16 | 30 | 40 | ||
- | 1 Piece(s) | 16 Day(s) | 8 ～ 20 | 8 ～ 20 | 35 | 50 | ||
- | 1 Piece(s) | 16 Day(s) | 8 ～ 22 | 8 ～ 22 | 40 | 40 | ||
- | 1 Piece(s) | 16 Day(s) | 8 ～ 22 | 8 ～ 22 | 40 | 50 | ||
- | 1 Piece(s) | 16 Day(s) | 8 ～ 22 | 8 ～ 22 | 40 | 55 | ||
- | 1 Piece(s) | 16 Day(s) | 8 ～ 22 | 8 ～ 22 | 40 | 66 | ||
- | 1 Piece(s) | 16 Day(s) | 12 ～ 30 | 12 ～ 30 | 55 | 78 | ||
- | 1 Piece(s) | 16 Day(s) | 14 ～ 38 | 14 ～ 38 | 65 | 90 | ||
- | 1 Piece(s) | 16 Day(s) | 19 ～ 45 | 19 ～ 45 | 80 | 114 | ||
- | 1 Piece(s) | 16 Day(s) | 20 ～ 50 | 20 ～ 50 | 95 | 126 | ||
- | 1 Piece(s) | 16 Day(s) | 20 ～ 60 | 20 ～ 60 | 105 | 140 |
Loading...Tải…
Basic InformationThông tin cơ bản
| Series Name | Jaw | Application | Standard / For Servo Motors / Stepping Motor | Features | High Torque Type / Low Moment of Inertia / Vibration Insulation |
|---|---|---|---|---|---|
| Allowable Misalignment | Angular Misalignment / Eccentricity / Axial Misalignment | Body Material | Aluminum Alloy | Product Category | Coupling Main Body |
| Buffer Material | Polyurethane | Operating Temperature(°C) | -20::60 | Shaft Tightening Method | Set Screw |
| Shaft Hole Shape | Standard | Shaft Tightening Method | 止动螺丝 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..
Frequently asked question (FAQ)FAQ
- Question:Question: What are the characteristics of claw couplings?
- Answer:Answer: Claw couplings can absorb vibration, compensate radial and angular deviation, and are maintenance free, oil resistant and electrically insulated.
- Question:Question: What are the applications of claw couplings?
- Answer:Answer: Applicable motor types for claw couplings: recommended for stepping motors and universal motors.
- Question:Question: How to select according to the purpose, environment, working conditions?
- Answer:Answer: Please refer to the link page for specific instructions. https://www.misumi.com.cn/special/coupling/select/situation/
- Question:Question: What is a coupling?

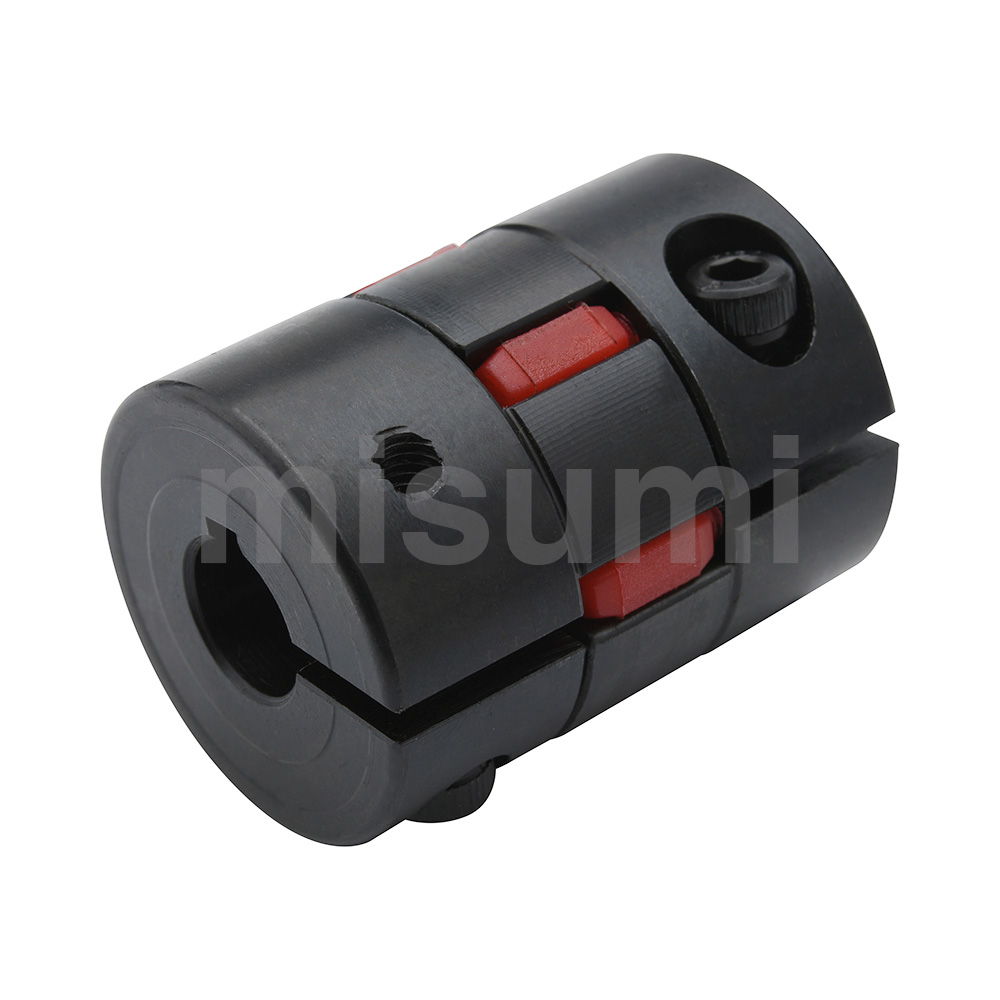

- Answer:Answer: A coupling is a part that connects two different rotating bodies (motor shaft, ball screw, etc.) and aims at transmitting torque. The load of assembly adjustment is reduced by absorbing the axis deviation (lateral misalignment, angular misalignment and axial amplitude) between rotating bodies. And in case of accidental overload, the coupling is destroyed and the rotating bodies are disconnected to protect the expensive power part and the whole device.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
