4080 Aluminum Frames Slot Width 8_VNM
:
MISUMI
For length from 4m, it may take 2days for delivery. Please contact cs@misumi.com.vn for further support
Product Overview
Economy series aluminum alloy profiles with a groove width of 8mm , a side length of 4080mm
Suitable for the structure of small hoods, cabinets, and display bars.
* For length from 4m, it may take 2days for delivery. Please contact cs@misumi.com.vn for further support
Order Example:
Specified Table
Suitable for the structure of small hoods, cabinets, and display bars.
* For length from 4m, it may take 2days for delivery. Please contact cs@misumi.com.vn for further support

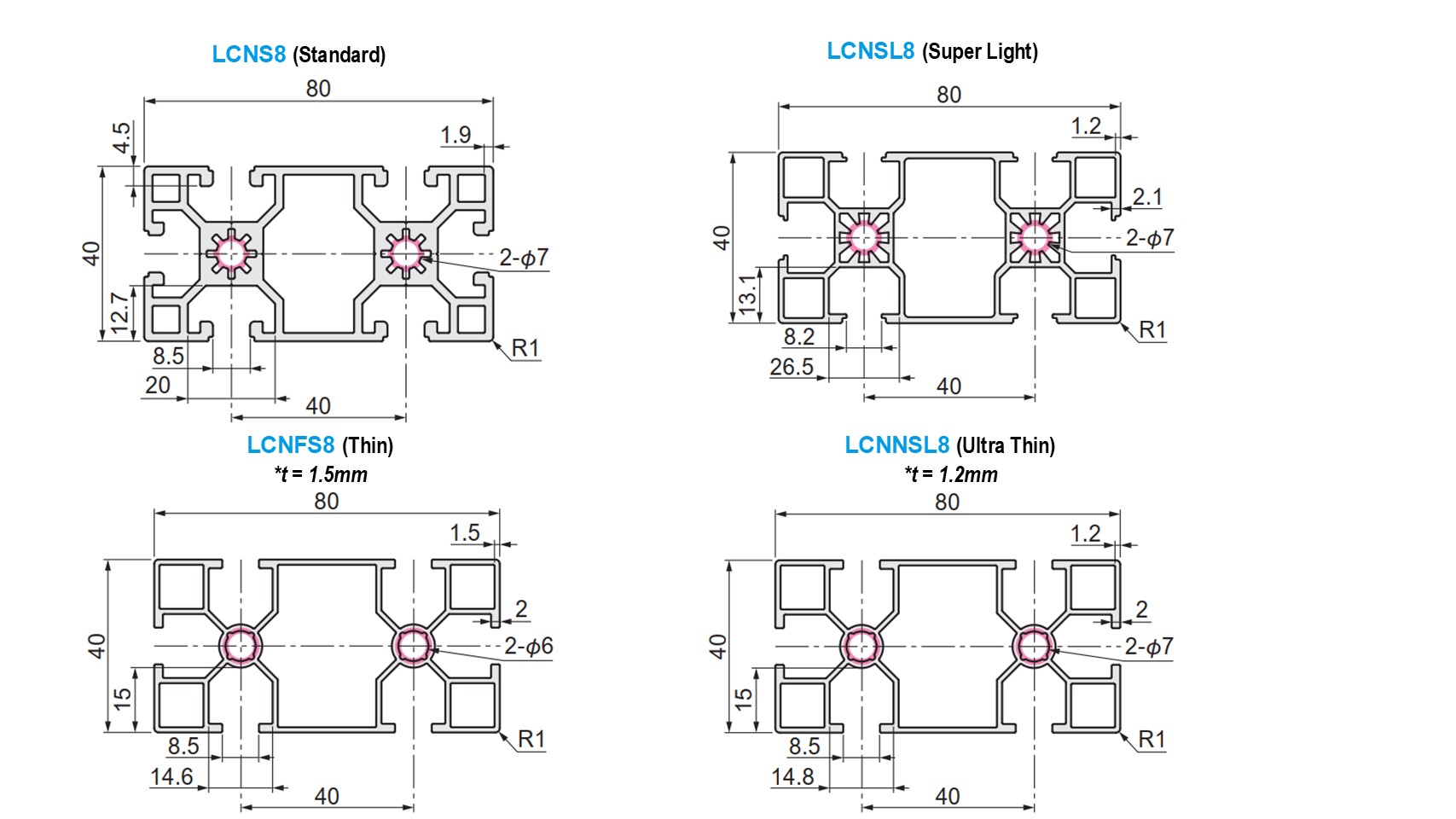

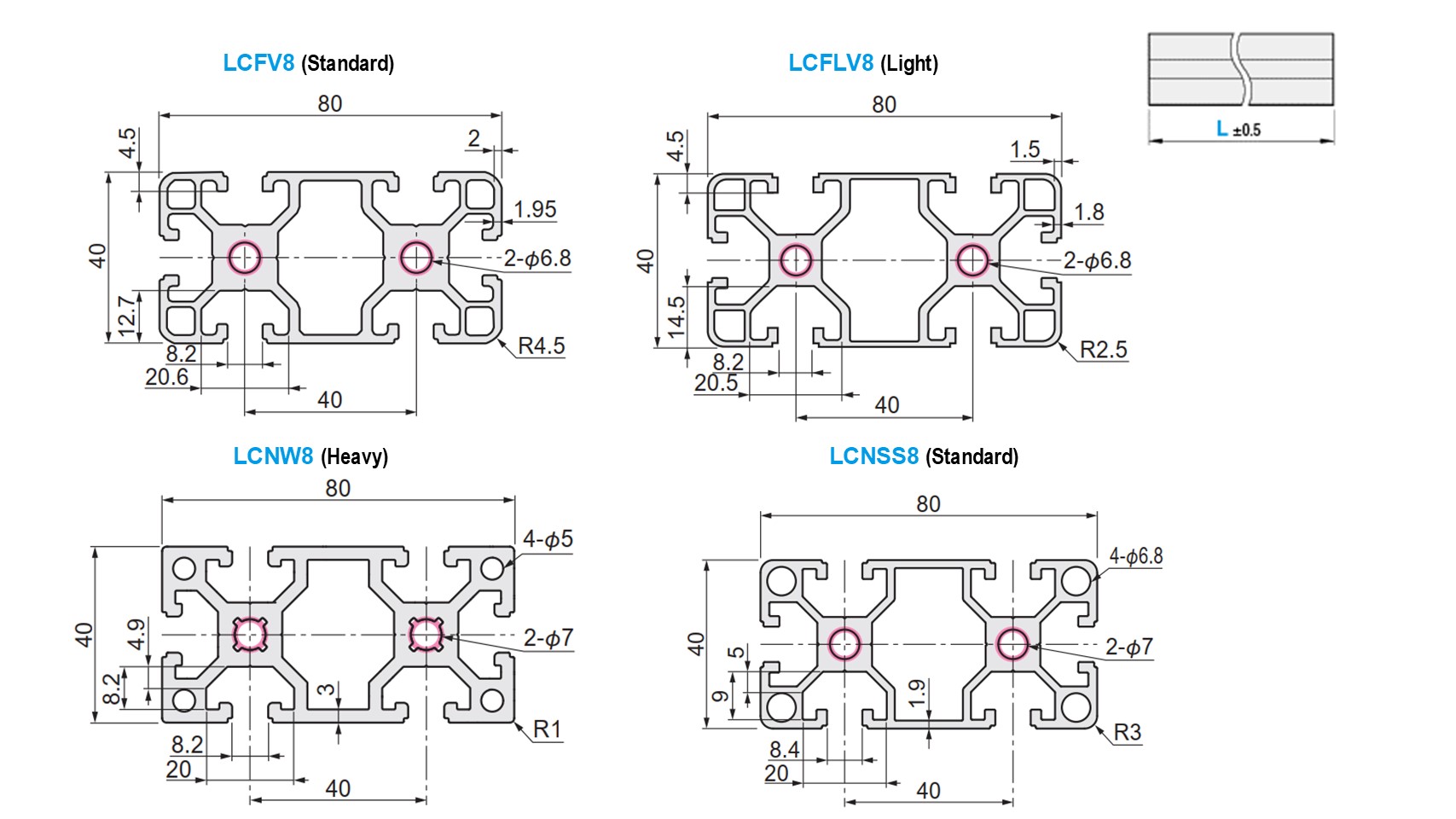

Dimensional Drawing
Specification Table
The specifications table contains information such as the specified length range, unit, as well as meter weight and inertial intercept.Order Example:
( | – |
LCNSL8 – 4080 | – 1000 |
Specified Table
|
|
| Type |
|
| Groove size (mm) | Mass Weight (Kg/m) | Recommend bracket and accessories 1 | Recommend bracket and accessories 2 | ||||
| Standard Bracket | Bolt | Nut | Heavy load bracket | Bolt | Nut | ||||||||
| LCFV8 | 4080 | 50 - 6000 | Standard | Clear Anodize | 6063-T5 | 8 | 2.67 | LCNBS8-4080 | E-GSCB8-18 | LCNHRN8-40-8 (Ball spring nut) | LBL7878-80 (Width 80mm) | E-GSCB8-18 | LCNHRN8-40-8 (Ball spring nut) |
| LCNS8 * | Standard | 2.62 | |||||||||||
| LCNW8 * | Heavy | 3.33 | |||||||||||
| LCFLV8 | Light | 2.21 | LCNRNM8-40-8 (Leaf spring nut) | LCNRNM8-40-8 (Leaf spring nut) | |||||||||
| LCNSS8 * | Standard | 2.55 | |||||||||||
| LCNL8 * | Light | 2.17 | |||||||||||
| LCNNSL8 * | Ultra Thin | 1.46 | LNTRNMC8-40-8 (Leaf spring nut) | LNTRNMC8-40-8 (Leaf spring nut) | |||||||||
| LCNFS8 * | Super Light | 1.59 | |||||||||||
LCNSL8 * | Super Light | 1.706 | |||||||||||
Surface Treatment
Material * Alteration is not applied for these model.
As it is a cheap and Economy series product, there may be small scars and defects on the surface. If you have higher requirements for the surface and end face, please select well.
Dimension Tolerance (mm)
0 - 10 | ± 0.2 |
10 - 25 | ± 0.25 |
25 - 38 | ± 0.3 |
18 - 50 | ± 0.4 |
50 - 100 | ± 0.6 |
100 - 180 | ± 0.85 |
> 180 | ± 1.00 |
Alterations
 |   Part No. | - |  L | - | （LTP·RTP·TPW） |
| LCNSL8－4080 | - | 1000 | - | LTP |
| Alteration | Alteration Symbol | Specification | Machining/Corresponding Accessories |
| End Tapping (Center Hole) | LTP/RTP/TPW |  | Tapping holes on the end face of aluminum profiles Parts used for this additional processing: Button Head Screws |
| 45-Degree Cutting | L□T45/R□T45 |  | Cutting with 45-degree angle. |
| Drilling Wrench Hole | LWP/RWP |  | Drilling Wrench holes in fixed positions for Blind joint connections. Parts used for this additional processing: Button Head Screws |
| Counter boring | Z8/XA |  | Machining Counterbored holes at any specified positions. Parts used for this additional processing: Button Head Screws |
| S Hole Blind Joint Dedicated Holes | LSH/RSH |  | Adding S holes for Pre-Assembly Insertion Double Joint connections. Parts used for this additional processing: Blind Joints, Pre-Assembly Insertion Double Joint Kits |
| M Hole Blind Joint Dedicated Holes | LMH/RMH |  | Adding M holes for Post- Assembly Insertion Double Joints,Center Joint connections. Parts used for this additional processing: Blind Joints, Pre-Assembly Insertion Center Joint Kits |
