3060 Aluminum Frames Slot Width 6_VNM

MISUMI

For length from 4m, it may take 2days for delivery. Please contact cs@misumi.com.vn for further support

Product Overview

Economy series aluminum alloy profiles with a groove width of 6mm, a side length of 3060mm, and one row of grooves.
Suitable for the structure of small hoods, cabinets, and display bars.
* For length from 4m, it may take 2days for delivery. Please contact cs@misumi.com.vn for further support

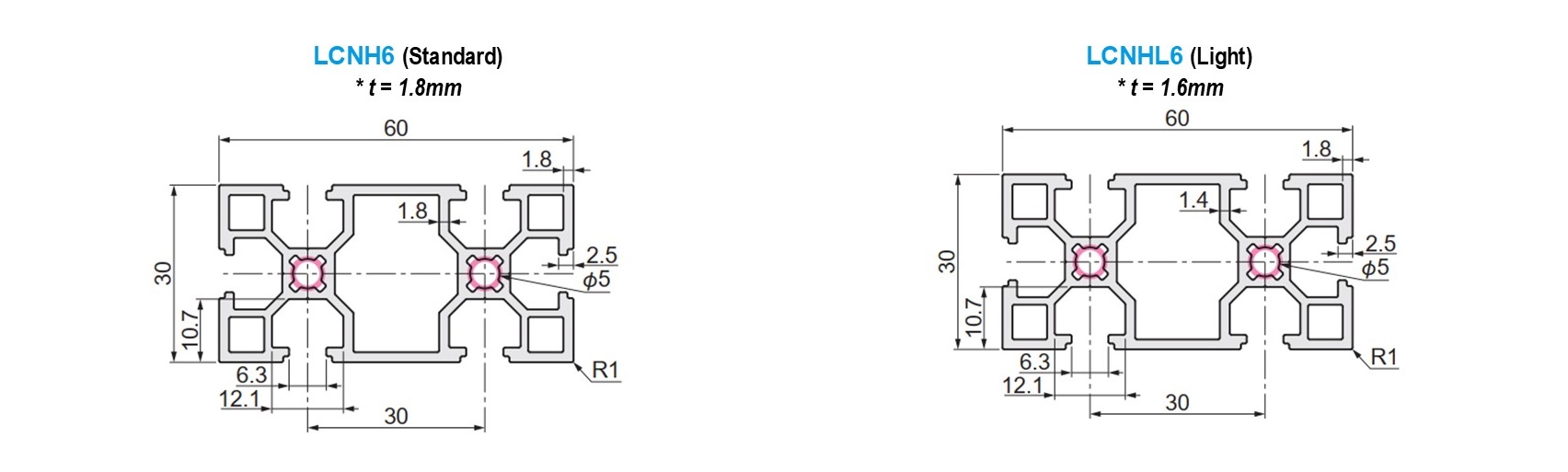

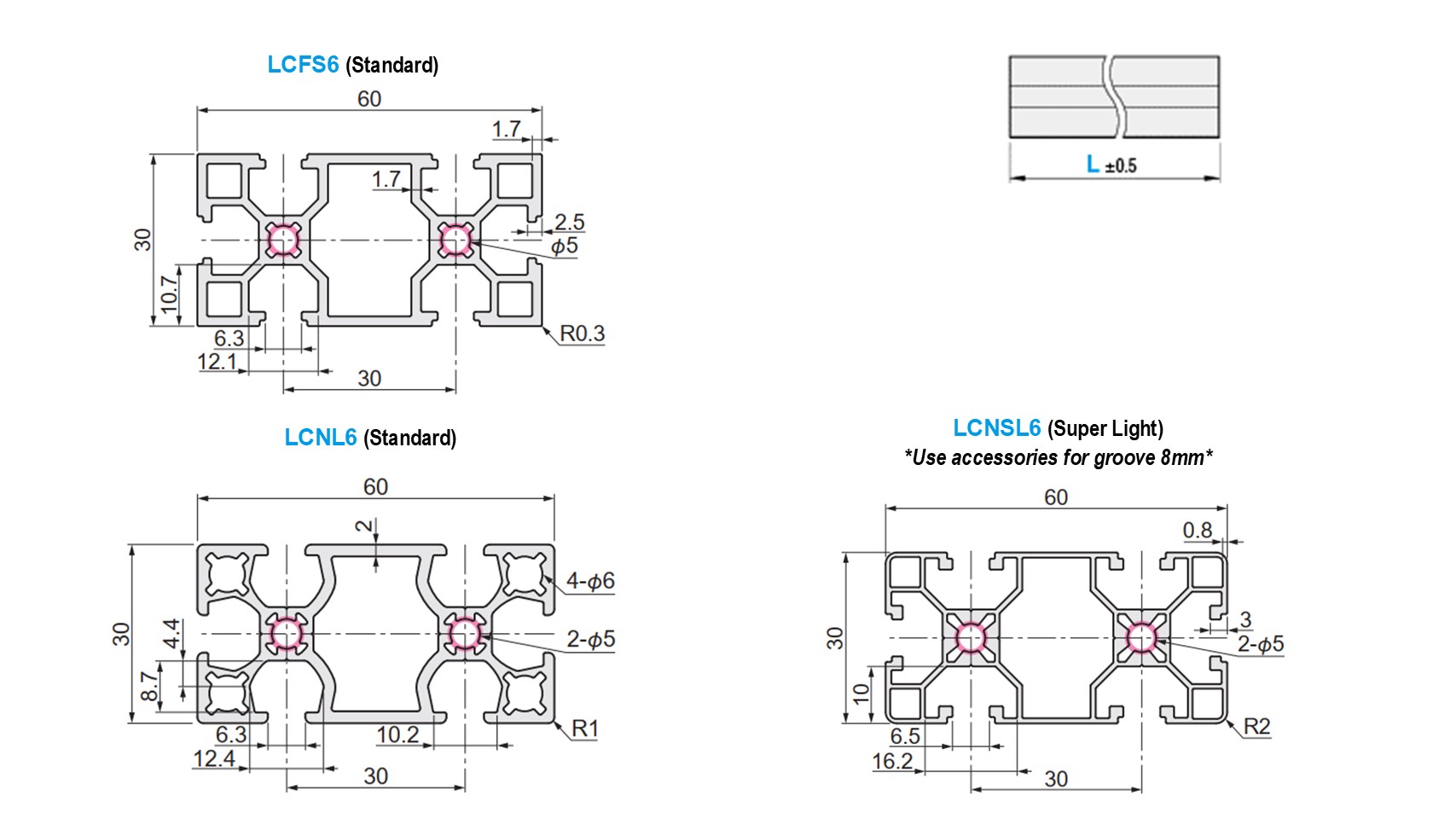

Dimensional Drawing

Specification Table

The specification table contains information such as the specified length range, unit, as well as meter weight and inertial intercept.
Order Example:

( Part Number – Profile )	– Length
LCNSL6 – 3060	– 1000

Specification Table

Part Number

Profile

Length
(0.5mm Increment)

Type

Surface Treatment

Material

Groove size
(mm)

Mass Weight
(Kg/m)

Recommend bracket and accessories 1

Recommend bracket and accessories 2

Standard Bracket

Bolt for Bracket

Nut

Heavy bracket

Bolt for Heavy Bracket

Nut

LCNSL6

3060

50-6000

Super Light

Clear Anodize

6063-T5

1.042

LCNL6

Standard

1.399

LCFS6

Standard

1.359

LCNH6

Standard

1.43

LCNHL6

Light

1.312

Dimension Tolerance (mm)

0 - 10	± 0.2
10 - 25	± 0.25
25 - 38	± 0.3
18 - 50	± 0.4
50 - 100	± 0.6
100 - 180	± 0.85
> 180	± 1.00

Product Features

[Features]
The product has abundant specifications and types, high quality and low price, and exquisite in appearance.

[Intended Use]
Suitable for the structure of small hoods, cabinets and display bars.

Example of Use

With 3030 series profiles, small and medium frames, hoods, racks and other modules can be easily completed for automation equipment.
Example of Use for European Standard Profile

Product Name	Bracket	Blind Joint	Leaf Spring Nut	Frame Cap	Groove Cover	U-Shape Groove Cover
Link	LCNBS	LCNISL	LCNRNM	LCNC	LCNCA	LCNCSB
