Signal Towers Straight
:
MISUMI
Product Overview
Stack Light
The English name for 多层信号灯 is Stack Light, and it is also known as indicator light, industrial signal light, or tower light. It is typically used in industrial production equipment and transmission control operations to convey equipment or transmission status to machine operators, technicians, production managers, and factory personnel through visual and audible signals.
The English name for 多层信号灯 is Stack Light, and it is also known as indicator light, industrial signal light, or tower light. It is typically used in industrial production equipment and transmission control operations to convey equipment or transmission status to machine operators, technicians, production managers, and factory personnel through visual and audible signals.
Dimensional Drawing
Mounting Base Dimensional Drawing
E-MSM320RYG-C
E-MSM320RYG-C
Mounting Base Dimensional Drawing
E-MSM470RYG-P
E-MSM470RYG-P
L-shaped Mounting Bracket Dimensional Drawing
E-MSM40RYG-L
E-MSM40RYG-L
Specification Table
Economical straight pole multi-layer signal tower
| Model | Rated voltage | Lampshade diameter | Number of layers | Lampshade color | Color (from the top layer) | Mounting method | Buzzer | Total height (mm) | Certification |
| E-MSM320RYG-C | DC24V | 53 | 3 | Color | Red · Yellow · Green | Base mounting | Yes | 320 | CE |
| E-MSM470RYG-P | DC24V | 53 | 3 | Color | Red · Yellow · Green | Base mounting | Yes | 472 | |
| E-MSM470RYG-L | DC24V | 53 | 3 | Color | Red · Yellow · Green | Side mounting | Yes | 466.8 |
Product Features

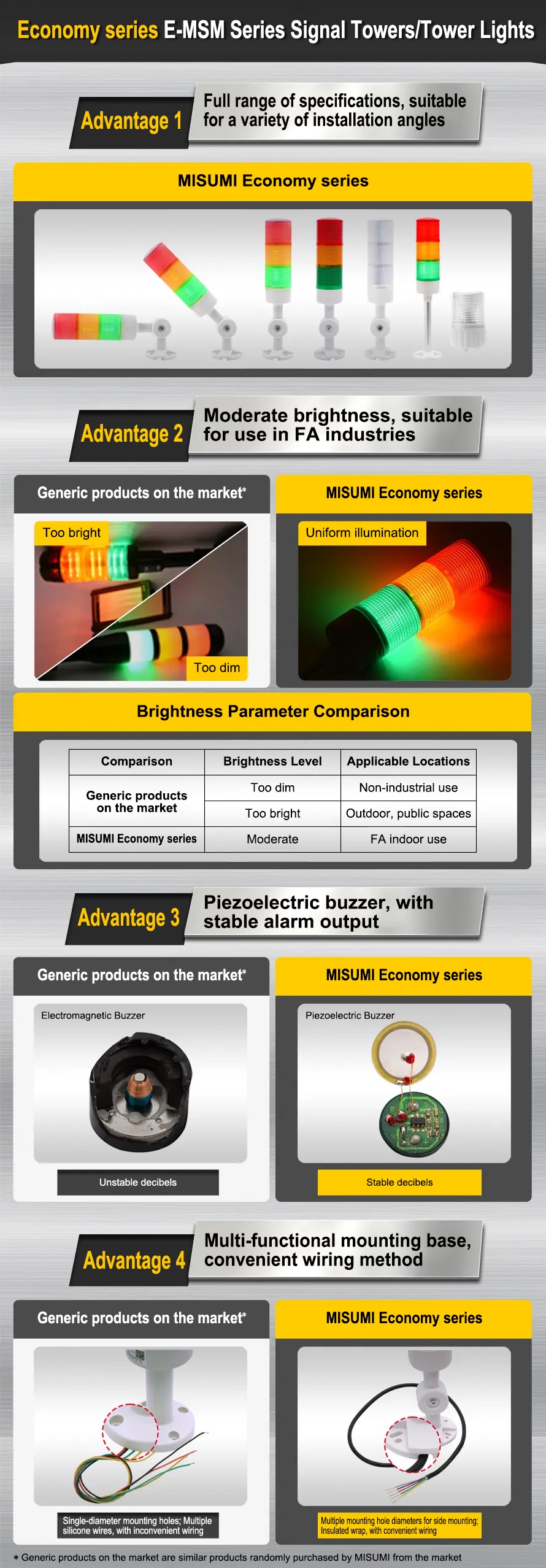

MISUMI's economical stack light uses high-brightness LEDs and features an integrated design to ensure performance and longevity. This not only guarantees stable basic operation, but also greatly reduces material construction costs.
For more product information, please scan the QR code below.
For more product information, please scan the QR code below.
Precautions
1. Do not install the product in flammable, explosive, high-temperature, or high-humidity environments.
2. Do not touch the conductive parts of the product while it is operating.
3. When installing, maintaining, or servicing the product, make sure the power is turned off.
4. Ensure there is sufficient installation space for the product.
5. When installing and using the product, standard wires must be used and connected to a compliant power supply.
6 To avoid dangerous accidents, the product should be installed and secured strictly in accordance with the instructions.
7 Before using the product, check for any damage and ensure the product is intact.
8 Installation, maintenance, and servicing should be carried out by qualified professionals.
2. Do not touch the conductive parts of the product while it is operating.
3. When installing, maintaining, or servicing the product, make sure the power is turned off.
4. Ensure there is sufficient installation space for the product.
5. When installing and using the product, standard wires must be used and connected to a compliant power supply.
6 To avoid dangerous accidents, the product should be installed and secured strictly in accordance with the instructions.
7 Before using the product, check for any damage and ensure the product is intact.
8 Installation, maintenance, and servicing should be carried out by qualified professionals.
Usage Method
Installation Method
Brand Introduction
Since its establishment in Japan in 1963, MISUMI Corporation has been committed to providing customers with a wide variety of high-quality parts for FA (Factory Automation), mold components, electronic parts, tools, and consumables quickly and accurately. By independently compiling product catalogs and establishing a direct sales marketing system, we have created a low-cost business model. Each year, we develop product plans based on customer feedback and requests, and continuously develop MISUMI brand products with a high level of quality.
