Foldable Handles Carbon Steel

MISUMI

**RoHS Compliant is available for some part numbers.
Please contact with MISUMI for detail effective date.

Foldable Handles Carbon Steel
These handles are designed for convenient opening and closing the doors, This is an economy item, The price is cheaper than the MISUMI standard product.They offer a wide variety of sizes to choose from.
[Feature]
- Mounting Pitch (mm.) :100, 120 and 180
- Overall Height (mm.) : 43
- Mounting Method : Threaded
- Material : Carbon Steel
[Application]
It is used to grab the doors before opening and closing.

Economy Foldable Handles

Foldable Design Durable Carbon Steel Versatile Size

- Made from robust carbon steel. Ensures long-lasting durability and strength, capable of withstanding heavy use in demanding environments.

- Features a foldable design for convenience. Allows the handle to be folded away when not in use, saving space and preventing accidental damage.

- Available in multiple mounting pitches and a specific overall height.

- Equipped with a threaded mounting method. Facilitates quick and secure installation, reducing setup time and labor costs.

- Finished with chrome plating. Enhances corrosion resistance and provides a sleek, professional appearance, extending the handle’s lifespan.

MISUMI Standard

Cheaper Price

Product Variety

3D CAD
3D CAD Support

Handles Product Overview

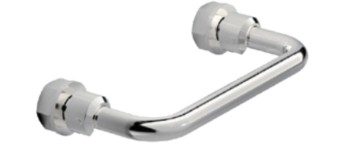

Economy Series Foldable Handle Carbon Steel
Foldable screw-mounted handle made of carbon steel, with a chrome-plated finish. The included accessories, washers and nuts, are also made of carbon steel with a nickel-plated finish, offering a bright and attractive appearance.
The product requires pre-drilled holes for installation.

Handles Dimensional Drawing

Material: Carbon Steel

Surface Treatment: Chromate Plating

Handles Specification Table

Part Number		D	H	h	S	Allowable Load (N)
Type	Mounting Pitch L
C－UWAFN	100	9	43.5	36.5	8	250
	120
	180

Handles Precautions

There are two width options available for handles in the same series. Please refer to the specification table for detailed dimensions.
This product does not currently support custom order lengths. If you require a custom size, please choose a non-Economy Series product: UADLF Series. However, please note that the surface finish will be barrel polishing, so select accordingly.

Handles Example of Use

Economy series Aluminum Handles with Mounting Holes Tapped

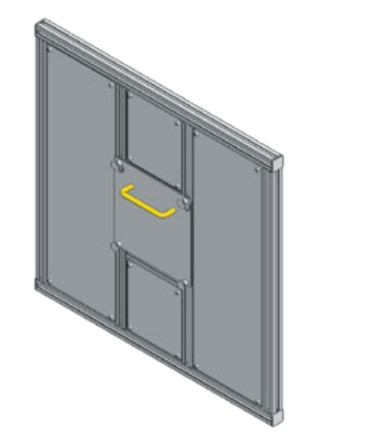

Example of Use: The picture shows the recommended use of aluminum alloy structure assembly and disassembly beds

Handles Related Product

Economy series Round Handle
