Aluminum Frame 8-50 Series/ Slot width 10/50x50mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square
● Slot width : 10 mm. /1 slot
● Cross-section : 50 mm. X 50 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5, A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear Anodize and Black Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.
See more ...
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square
● Slot width : 10 mm. /1 slot
● Cross-section : 50 mm. X 50 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5, A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear Anodize and Black Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.
See more ...
Dimensional Drawing of Aluminum Frames
| EFS (standard type) | HFS (standard type) | GFS (high rigidity type) | ||||
 |  |  |  |
8-45 Series |
 |
*There is no tolerance for the L dimension of the fixed length Aluminum Frames.
For other dimensional tolerances,
For other dimensional tolerances,

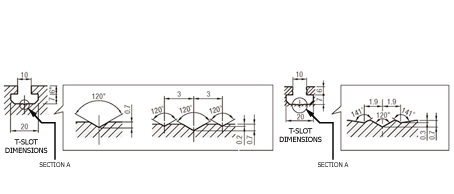

Groove details (HFS/GFS)
Groove details (EFS)
Groove bottom details
Groove bottom details
(HFS
type)
type)
(GFS
type)
type)
(EFS
type)
type)
Enlarged view of part A
Enlarged view of part A
Enlarged view of part A
■The 8-45 series has
a groove width of 10±0.36 mm and is suitable for M8 bolts.
[ ! ]No surface treatment is applied to cut surfaces or additionally machined areas.
[ ! ]If an end tap is specified, it will be machined in the area circled in red.
a groove width of 10±0.36 mm and is suitable for M8 bolts.
[ ! ]No surface treatment is applied to cut surfaces or additionally machined areas.
[ ! ]If an end tap is specified, it will be machined in the area circled in red.
Specified Length Aluminum Frames Specifications Table (Additional Processing: Possible)
| Model | − | L | |
| HFS8-5050 | − | 800 |
| type | Material | Surface Treatment | Model | L specified in 0.5mm increments (tolerance ±0.5mm) | Mass kg/m | Cross-sectional area mm 2 | Moment of inertia mm 4 | |
| ℓx | ℓy | |||||||
| HFS | A6005CSS-T5 | White anodized aluminum | HFS8-5050 | 5 0 to 4 0 0 0 | 3.43 | 1150 | 26.64× 104 | 26.64× 104 |
| HFS | A6005CSS-T5 | Black anodized aluminum | HFSB8-5050 | 5 0 to 4 0 0 0 | 3.43 | 1150 | 26.64× 104 | 26.64× 104 |
| EFS | A6005CSS-T5 | White anodized aluminum | EFS8-5050 | 5 0 to 4 0 0 0 | 2.84 | 1053 | 26.98× 104 | 26.98× 104 |
| EFS | A6005CSS-T5 | Black anodized aluminum | E F S B 8 －5 0 5 0 | 5 0 to 4 0 0 0 | 2.84 | 1053 | 26.98× 104 | 26.98× 104 |
| GFS | A6061SS-T6 equivalent | White anodized aluminum | GFS8-5050 | 5 0 to 4 0 0 0 | 4.4 | 1633 | 38.16× 104 | 38.16× 104 |
Fixed Length Aluminum Frames Specifications Table (Effective Length 4000mm)
[ ! ]Fixed-length Aluminum Frames have a format with K at the beginning of the format code for each Aluminum Frames.| Model | − | L | |
| KHFS8-5050 | − | 4000 |
| type | Material | Surface Treatment | Model | Lmm (no tolerance specified)*2 | Cross-sectional area mm 2 | Moment of inertia mm 4 | |
| ℓx | ℓy | ||||||
| HFS | A6005CSS-T5 | White anodized aluminum | K H F S 8 －5 0 5 0 | 4 0 0 0 | 1150 | 26.64× 104 | 26.64× 104 |
| HFS | A6005CSS-T5 | Black anodized aluminum | K H F S B 8 －5 0 5 0 | 4 0 0 0 | 1150 | 26.64× 104 | 26.64× 104 |
| EFS | A6005CSS-T5 | White anodized aluminum | K E F S 8 －5 0 5 0 | 4 0 0 0 | 1053 | 26.98× 104 | 26.98× 104 |
| EFS | A6005CSS-T5 | Black anodized aluminum | K E F S B 8 －5 0 5 0 | 4 0 0 0 | 1053 | 26.98× 104 | 26.98× 104 |
| GFS | A6061SS-T6 equivalent | White anodized aluminum | K G F S 8 －5 0 5 0 | 4 0 0 0 | 1633 | 38.16× 104 | 38.16× 104 |
The actual size, including the gripping allowance, is 4000 mm or more (it will be several tens of mm longer).
The fixed-length Aluminum Frames is a Aluminum Frames that the customer cuts to their own use, so the exact lengthcannot be specified.
[ ! ]A heat resistance temperature of up to 70°C is recommended. Continuing temperatures above 100°C will cause bendingdue to the load.
However, temporary high temperatures such as steam can tolerate up to 100°C.
Alterations of Aluminum Frames (Specified Length Only, Fixed Length Not Possible)
[ ! ]By using the various alterations listed below, MISUMI's specified length Aluminum Frames can be assembled with greaterflexibility.
Some Aluminum Frames cannot be applied depending on the type and size. Please check the price list on eachalteration page to see if it is applicable.
Items marked with "-" in the price list cannot be applied.
Some Aluminum Frames cannot be applied depending on the type and size. Please check the price list on eachalteration page to see if it is applicable.
Items marked with "-" in the price list cannot be applied.
| classification | Additional Work name | Alteration code example | How to Use | Content |
|---|---|---|---|---|
| > End face tapping | End face tap (center hole) | LTP/RTP/TPW LHP/RHP/HPW |  | The Aluminum Frames is tapped. ■HFS/EFS type LTP/RTP/TPW: M12 depth 18 mm (helisert inserted) LHP/RHP/HPW: M10 depth 18 mm (helisert inserted) ■GFS type LTP/RTP/TPW: M12 depth 36 mm LHP/RHP/HPW: M8 depth 15 mm (helisert inserted) Blind joints (screw joints simple joints) hat require this processing |
| > Change cutting method | High-precision cutting | SC |  | The tolerance of the overall length L has been changed from L±0.5 to L±0.2, allowing for high-precision cutting. *Only applicable to L≦1500 |
| 45 degree cut | L□T45 R□T45 |  | The cut is made at a 45-degree angle. 45-degree cuts cannot be specified in the same direction with otheralterations. Example: HFS6-3030-500- L TP- LAT45 ⇒ ✖ (alterations in the same direction (left)) HFS6-3030-500-LTP- R AT45 ⇒ 〇 (separate alterations on left and right) [ ! ]If you would like to cut at an angle other than 45 degrees | |
| > Wrench Drilling | Fixed position wrench hole | LCH/LCV/LCP RCH/RCV/RCP |  | This additional processing is required to drill a wrench hole (φ8) in accordance with the position of the tap onthe end face of the mating Aluminum Frames when fastening a blind joint that assembles Aluminum Frames into an Lshape. Blind joints that require this processing ( screw joints / single joints / tapping joints) |
Hole position shifted by the thickness of the Aluminum Frames cap | FL FR |  | The hole position for the additional fixed position wrench hole is moved by the thickness of the Aluminum Framescap (3 mm). This prevents the Aluminum Frames cap from protruding when assembled at a corner. | |
| Wrench holes at specified positions | AH/BH/CH/DH/EH AV/BV/CV/DV/EV AP/BP/CP/DP/EP |  | This is an additional process to drill a wrench hole (φ8) at any position. It can be used when fastening blindjoints at locations other than the Aluminum Frames end. ・ Up to five holes can be drilled in each of thehorizontal, vertical, and cross directions. [!] If you require six or morewrench holes. | |
| > Counterbore Drilling | Specified position counterbored hole | Z8-XA○○ Z12-YA○○ |  | This is an additional process to drill a counterbore hole (select from Z6, Z8, or Z12) at any position. Z6: Through hole φ6.5, counterbore φ11, Z8: Through hole φ9, counterbore φ14, Z12: Through hole φ13,counterbore φ19 . Up to five holes can be drilled in one direction. For Aluminum Frames with multiplerows of grooves on one surface, counterbore holes will be machined in all grooves. [ ! ]If you require more than six counterbore holes or to change the direction of the counterbore holes. |
| > Drilling holes specifically for blind joints | D hole | LDH/LDV RDH/RDV |  | Drill the holes required for fastening a single joint. ( Single joint) |
| S hole | LSH/LSV RSH/RSV |  | Drills holes required for fastening first-in-place double joints ( first-in-place double joints). | |
| M hole | LMH/LMV RMH/RMV |  | Drills holes required for connecting post-assembly double joints and center joints. ( Post-assembly double joints / center joints) | |
| > Other processing | GFS series end face tap | LTS/RTS/TSW |  | We perform the tapping required to attach end plates specifically for high-rigidity Aluminum Frames. ( High-rigidity plates ) |
| C-chamfered end | CW |  | The outer periphery of the Aluminum Frames end face is chamfered. | |
| Sticking stickers | ZZZ |  | A sticker printed with the catalog number etc. is attached to the Aluminum Frames. There are restrictions on the number of characters etc., but it is also possible to print the customer'sserial number and unit number. |
8-45 Series Related Parts of Aluminum Frames
■Aluminum Frames accessories
| Product name | bracket | Blind Joint | nut | Aluminum Frames cap | Groove cover | Conductive washer |
|---|---|---|---|---|---|---|
| photograph |  |  |  |  |  |  |
| Product page | Here | Here | Here | Here | Here | Here |

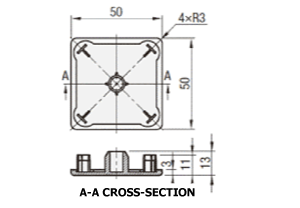

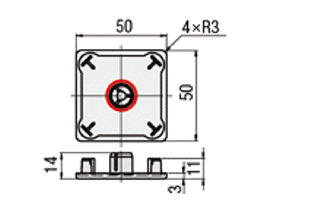

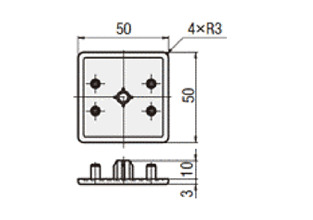

■List of compatible Aluminum Frames caps
Aluminum Frames model number | Compatible Aluminum Frames caps | |||||
Product Type | color | Thickness | Model number | Number of uses | ||
| HFS8-5050 HFSB8-5050 EFS8-5050 EFSB8-5050 fixed length Aluminum Frames (model numbers starting with K) are also the same. |  | Cap stopper | black | 3 | HFC8-5050-B | 1 |
Light gray | 3 | HFC8-5050-S | 1 | |||
 | bolted | black | 3 | HFCB8-5050-B | 1 | |
Light gray | 3 | HFCB8-5050-S | 1 | |||
yellow | 3 | HFCB8-5050-Y | 1 | |||
| The same applies to the GFS8-5050 fixed length Aluminum Frames (model number starting with K). |  | Cap stopper | black | 3 | GFC8-5050-B | 1 |
Light gray | 3 | GFC8-5050-S | 1 | |||

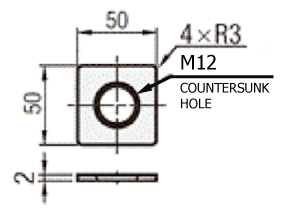

 | Bolt mounting (high rigidity plate type) requires special additional processing. | silver color | 2 | HFCD8-5050 | 1 | |
