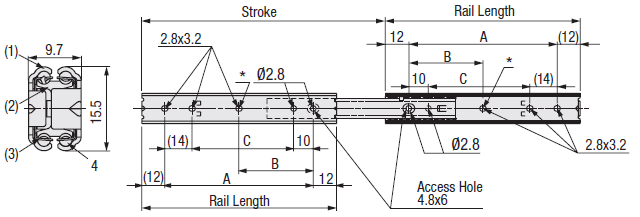

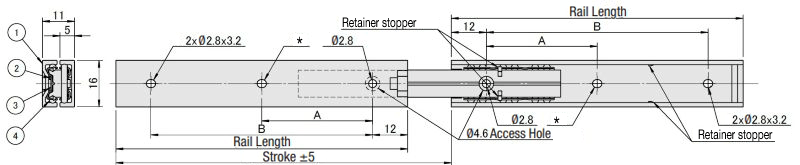

Slide Rails - Light Load, Compact, Aluminum / Stainless Steel - Three Step
Click this image to zoom it.Nhấp vào hình ảnh này để phóng to.
Move the mouse over or click the image to zoom
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- From :
- 311,115VND/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
Similar Products
Product DetailProduct Description
- Slide Rails - Light Load, Compact, Aluminum / Stainless Steel, SAR3 / SARC3 / SSRC3 series from MISUMI.
- Aluminum Type has the advantage of being lightweight and Stainless Steel Type excels in corrosion resistance and load capacity, each available with a compact size.
- The overall length of the three-step slide rail can be selected up to 500 mm.
- The full stroke motion is unavailable when the length is 80mm, because the stroke length falls below the rail length.
- For horizontal installation, the target value of load rating is 25% (Reference Value)
- The rails cannot be pulled apart.
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number |
|---|
| SAR310 |
| SAR320 |
| SAR330 |
| SAR340 |
| SAR350 |
| SARC308 |
| SARC310 |
| SARC315 |
| SSRC308 |
| SSRC310 |
| SSRC315 |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to ShipSố ngày giao hàng | RoHS | Stroke (mm) | Rail Length (mm) | Load Rating (N / 2 pcs.) (N) | Material | Height (mm) | Width (mm) | Surface Treatment | Ball Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
311,115 VND | 1 Piece(s) | Available | 4 Day(s) or more | 10 | 100 | 100 | 107 | [Aluminum] Aluminum Alloy | 16 | 20 | [Anodize] Clear Anodize | - | |
468,342 VND | 1 Piece(s) | Available | Same day | 10 | 223 | 200 | 88 | [Aluminum] Aluminum Alloy | 16 | 20 | [Anodize] Clear Anodize | - | |
622,232 VND | 1 Piece(s) | Available | Same day | 10 | 345 | 300 | 68 | [Aluminum] Aluminum Alloy | 16 | 20 | [Anodize] Clear Anodize | - | |
816,366 VND | 1 Piece(s) | Available | 4 Day(s) or more | 10 | 460 | 400 | 49 | [Aluminum] Aluminum Alloy | 16 | 20 | [Anodize] Clear Anodize | - | |
986,937 VND | 1 Piece(s) | Available | Same day | 10 | 576 | 500 | 29 | [Aluminum] Aluminum Alloy | 16 | 20 | [Anodize] Clear Anodize | - | |
342,804 VND | 1 Piece(s) | Available | 4 Day(s) or more | 10 | 77 | 80 | 20 | [Aluminum] Aluminum Alloy | 11 | 16 | [Anodize] Clear Anodize | - | |
359,128 VND | 1 Piece(s) | Available | 4 Day(s) or more | 10 | 117 | 100 | 29 | [Aluminum] Aluminum Alloy | 11 | 16 | [Anodize] Clear Anodize | - | |
477,477 VND | 1 Piece(s) | Available | 4 Day(s) or more | 10 | 151 | 150 | 39 | [Aluminum] Aluminum Alloy | 11 | 16 | [Anodize] Clear Anodize | - | |
481,558 VND | 1 Piece(s) | Available | 4 Day(s) or more | 10 | 97 | 80 | 98 | Steel | 9.7 | 15.5 | Not Provided | SUS440C | |
510,125 VND | 1 Piece(s) | Available | 4 Day(s) or more | 10 | 125 | 100 | 108 | Steel | 9.7 | 15.5 | Not Provided | SUS440C | |
314,390 VND | 1 Piece(s) | 6 Day(s) or more | 10 | 177 | 150 | 118 | Steel | 9.7 | 15.5 | Not Provided | SUS440C |
Loading...Tải…
Basic InformationThông tin cơ bản
| Type | Slide | Rail Qty. | Three-Step Slide |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..
