High Torque Timing Pulleys - 8YU
:
MISUMI
- Please note that the swaged flange options, NFC, RFC, and LFC, are not reflected in the CAD data.
- Please check the content on our website as the PDF does not contain the most up-to-date information.

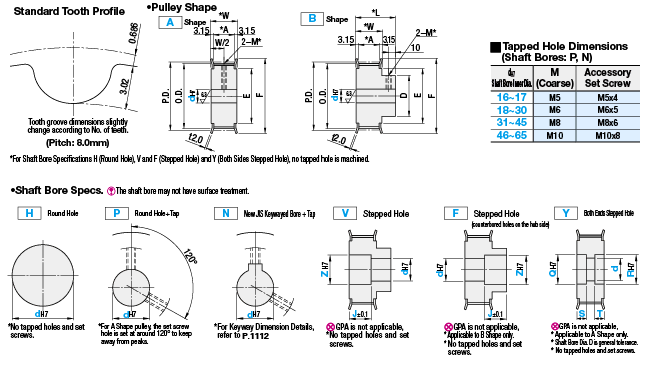

Since it has an arc tooth profile, it has little backlash and it is suitable for positioning applications.
[Material]
· Pulley: Aluminum alloy, S45C equivalent
· Flange: Aluminum alloy, SPCC
[Surface treatment]
· Clear anodize, black iron oxide coating
| Part Number | [ M ] Material | [ S ] Surface Treatment | |||
| Belt Width 15mm | Belt Width 20mm | Belt Width 25mm | Pulley | Flange | |
| A:16.7 W:23.0 L:43.0 | A:21.7 W:28.0 L:48.0 | A:26.7 W:33.0 L:53.0 | |||
| GPA__YU8150 | GPA__YU8200 | GPA__YU8250 | 2017 Aluminum Alloy (Duralumin) | A5052 | Clear Anodize |
| GPT__YU8150 | GPT__YU8200 | GPT__YU8250 | S45C | SPCC | - |
| GPM__YU8150 | GPM__YU8200 | GPM__YU8250 | Black Oxide | ||
[ ! ] Due to vibrations during transportation, the set screw may become detached from the main body.
