Locating Pins - Large Head, Tapered (Tapped)
:
MISUMI
- Locating Pins - Large Head, Tapered (Tapped) from MISUMI.
- Large Head, Tapered with the shape designed to be mounted from back using bolts. Improved maintainability compared to Press Fit Type.
- The material of locating pin can be selected 3 types, steel SKS3 Equivalent, stainless steel SUS304, SUS440C or 13Cr stainless.
- Polished, centering hole is sometimes not available for SUS304.
- SUS440C or 13Cr stainless has an identification groove at any position on D part.
- Insertion guide tip shape can be selected 2 types, round, and diamond.
(Round)
(Diamond)
[ ! ] SUS304 products may not be polished and have no centering hole.
[ ! ] For SUS440C or 13Cr stainless steel, an identification groove is provided at any position on D part.

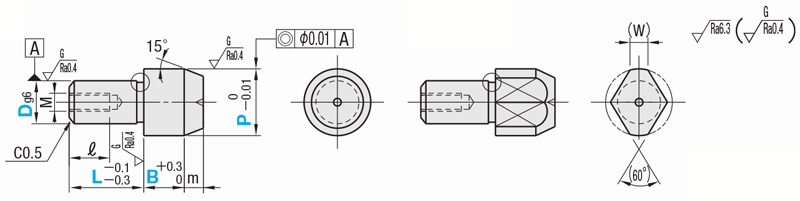

a = 1.0 d = D−0.2
[ ! ] Relief dimensions are reference values.
Material No. | [M] Material | [S] Surface Treatment | [H] Hardness | P Fixed | P Configurable | P, L, B Configurable | |||
Type | Shape Code | Type | Shape Code | Type | Shape Code | ||||
(1) | SKS3 Equivalent | — | Treated Hardness: 60 to 63 HRC | JP | BTB (Round) DTB (Diamond) | JP | BTA (Round) BTD (Diamond) | FP | BTA (Round) BTD (Diamond) |
(2) | SKS3 Equivalent | Hard Chrome Plating | Treaded Hardness: 50 to 55 HRC | GJP | GJP (Round only) | GFP | |||
Plating Hardness: 750 HV or more | |||||||||
(3) | SKS3 Equivalent | — | — | — | BJP (Round only) | — | |||
(4) | SUS304* | — | — | SJP | SJP | SFP | |||
(5) | SUS304 | Hard Chrome Plating | Plating Hardness: 750 HV or more | HJP | — | HFP | |||
(6) | SUS440C or 13Cr Stainless Steel | — | Treaded Hardness: 50 to 55 HRC | CJP | CJP | CFP | |||
