Product DetailSpecification/DimensionsĐặc điểm kỹ thuật / Kích thướcĐặc điểm kỹ thuật / Kích thước
-
With or w/o Flange
-
Flange -
No Flange
-
-
Shape
-
Straight -
Crowned
-
-
Material
- Steel
- Aluminum
- SUS304
- Polyacetal
- Steel
-
Outer Dia. D(Ø)
-
T Selection(mm)
-
Shaft Type
-
1-Bearing -
1-Bearing on Each End (2-Bearing in Total)
-
-
Surface Treatment
- Not Provided
- Black Oxide
- Electroless Nickel Plating
- Clear Anodize
-
Shaft (Bore) Dia. d(mm)
-
type
- HBG
- HBGA
- HBGC
- HBGCA
- HBGCM
- HBGCS
- HBGM
- HBGP
- HBGS
-
CADCAD
- 2D
- 3D
Days to ShipSố ngày giao hàng
-
- Alltất cả các
- Same day
- 3 Day(s) or Less
- 4 Day(s) or Less
- 5 Day(s) or Less
- 6 Day(s) or Less
- 7 Day(s) or Less
Specify AlterationsChỉ định thay đổi
Idlers for Flat Belts-Flanged Type/Crowned Type/Width L6-32
Click this image to zoom it.Nhấp vào hình ảnh này để phóng to.
Move the mouse over or click the image to zoom
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- From :
- 316,328VND/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
Similar Products
Product DetailProduct Description
| MiSUMi C-VALUE | |
|---|---|
 | We have more cost competitive item |

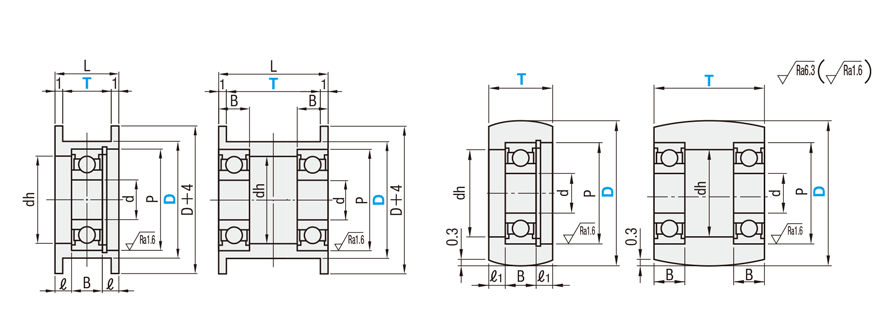

Straight or Crowned Type can be selected.
· Idlers type: Bearing Built-in.
· Shaft Type: one Bearing and Bearing on Each End 2 pcs.
· Type of Idlers: Flanged type and Crowned type.
· The series code of Flanged type: HBG HBGM HBGA HBGS and HBGP.
· The series code of Crowned type: HBGC HBGCM HBGCA and HBGCS.
· Material Idlers body: S45C Equivalent , Aluminum Alloy, Stainless Steel SUS304 and Polyacetal.
· Material of Bearing: Steel and Stainless Steel.
· Outer Diameter: 15 – 50 mm
· Width Thickness: 6 – 32 mm
· Idlers for Stainless Steel Belts- Crowned
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number |
|---|
| HBG15-6 |
| HBG15-16 |
| HBG15-21 |
| HBG15-27 |
| HBG15-32 |
| HBG20-6 |
| HBG20-11 |
| HBG20-16 |
| HBG20-21 |
| HBG20-27 |
| HBG20-32 |
| HBG25-11 |
| HBG25-16 |
| HBG25-21 |
| HBG25-27 |
| HBG25-32 |
| HBG30-11 |
| HBG30-16 |
| HBG30-21 |
| HBG30-27 |
| HBG30-32 |
| HBG35-16 |
| HBG35-21 |
| HBG40-16 |
| HBG40-21 |
| HBG40-27 |
| HBG40-32 |
| HBG50-21 |
| HBG50-27 |
| HBG50-32 |
| HBGA15-6 |
| HBGA15-16 |
| HBGA15-21 |
| HBGA15-27 |
| HBGA15-32 |
| HBGA20-6 |
| HBGA20-11 |
| HBGA20-16 |
| HBGA20-21 |
| HBGA20-27 |
| HBGA20-32 |
| HBGA25-11 |
| HBGA25-16 |
| HBGA25-21 |
| HBGA25-27 |
| HBGA25-32 |
| HBGA30-11 |
| HBGA30-16 |
| HBGA30-21 |
| HBGA30-27 |
| HBGA30-32 |
| HBGA35-16 |
| HBGA35-21 |
| HBGA40-16 |
| HBGA40-21 |
| HBGA40-27 |
| HBGA40-32 |
| HBGA50-21 |
| HBGA50-27 |
| HBGA50-32 |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to ShipSố ngày giao hàng | RoHS | With or w/o Flange | Shape | Material | Outer Dia. D (Ø) | T Selection (mm) | Shaft Type | Surface Treatment | Shaft (Bore) Dia. d (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
316,328 VND | 1 Piece(s) | Available | Same day | 10 | Flange | Straight | [Steel] S45C Equivalent | 15 | 6 | 1-Bearing | Black Oxide | 4 | |
487,735 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 15 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 5 | |
547,998 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 15 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 5 | |
632,240 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 15 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 5 | |
662,477 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 15 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 5 | |
316,328 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 20 | 6 | 1-Bearing | Black Oxide | 5 | |
340,309 VND | 1 Piece(s) | Available | Same day | 10 | Flange | Straight | [Steel] S45C Equivalent | 20 | 11 | 1-Bearing | Black Oxide | 5 | |
493,781 VND | 1 Piece(s) | Available | Same day | 10 | Flange | Straight | [Steel] S45C Equivalent | 20 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 5 | |
569,058 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 20 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 8 | |
653,510 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 20 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 8 | |
686,456 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 20 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 8 | |
370,335 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 25 | 11 | 1-Bearing | Black Oxide | 6 | |
530,065 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 25 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 6 | |
590,119 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 25 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 8 | |
677,489 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 25 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 8 | |
710,436 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 25 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 8 | |
394,525 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 30 | 11 | 1-Bearing | Black Oxide | 8 | |
541,950 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 30 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 8 | |
593,247 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 30 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 8 | |
695,423 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 30 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 8 | |
731,705 VND | 1 Piece(s) | Same day | 10 | Flange | Straight | [Steel] S45C Equivalent | 30 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 8 | ||
626,193 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 35 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 10 | |
701,470 VND | 1 Piece(s) | Same day | 10 | Flange | Straight | [Steel] S45C Equivalent | 35 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 10 | ||
659,557 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 40 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 10 | |
737,753 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 40 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 10 | |
864,117 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 40 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 10 | |
906,240 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 40 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 10 | |
791,968 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 50 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 12 | |
927,508 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 50 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 12 | |
972,550 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Steel] S45C Equivalent | 50 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Black Oxide | 12 | |
325,295 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 15 | 6 | 1-Bearing | Clear Anodize | 4 | |
563,011 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 15 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 5 | |
560,091 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 15 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 5 | |
650,382 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 15 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 5 | |
680,409 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 15 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 5 | |
325,295 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 20 | 6 | 1-Bearing | Clear Anodize | 5 | |
349,275 VND | 1 Piece(s) | Same day | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 20 | 11 | 1-Bearing | Clear Anodize | 5 | ||
569,058 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 20 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 5 | |
578,024 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 20 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 8 | |
674,570 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 20 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 8 | |
707,517 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 20 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 8 | |
391,397 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 25 | 11 | 1-Bearing | Clear Anodize | 6 | |
556,963 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 25 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 6 | |
599,294 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 25 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 8 | |
698,551 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 25 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 8 | |
731,705 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 25 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 8 | |
412,458 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 30 | 11 | 1-Bearing | Clear Anodize | 8 | |
889,154 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 30 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 8 | |
611,180 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 30 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 8 | |
716,484 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 30 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 8 | |
752,766 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 30 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 8 | |
635,159 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 35 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 10 | |
695,423 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 35 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 10 | |
671,443 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 40 | 16 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 10 | |
749,847 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 40 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 10 | |
891,226 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 40 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 10 | |
933,556 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 40 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 10 | |
809,901 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 50 | 21 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 12 | |
954,408 VND | 1 Piece(s) | Available | 5 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 50 | 27 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 12 | |
1,002,785 VND | 1 Piece(s) | Available | 7 Day(s) | 10 | Flange | Straight | [Aluminum] 2000 Series Aluminum Alloy | 50 | 32 | 1-Bearing on Each End (2-Bearing in Total) | Clear Anodize | 12 |
Loading...Tải…
Basic InformationThông tin cơ bản
| Type | Idlers (Bearing Built-in) | Surface Urethane | Urethane Not Provided | Length L(mm) | ~50 |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..
