One-Touch Couplings - Union

MISUMI

·Materials

Material

PBT(Polybutylene Terephthalate)

Specifications

* Specifications

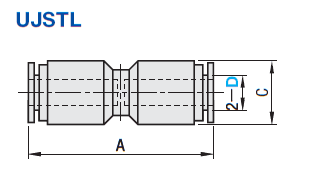

Part Number		Body Color	A	C	Effective Sectional Area (mm²) (Urethane Tube)	Mass (g)
Type	D	Body Color	A	C	Effective Sectional Area (mm²) (Urethane Tube)	Mass (g)
UJSTL	4	B(Black) W(White)	33.5	10	4	4
	6	B W	36.5	12.5	10	6
	8	B W	39.5	14.5	22	8
	10	B W	45	17.5	30	13
	12	B W	47.5	20	35	17
	16	B W	58	26.5	90	38

UNSTL has been changed. Orders acceptable until April, 2009.

- Specification

permissible Fluid	Compressed Air	Water
Operating Temperature Range	−15~60 Degrees (Celcius)	5~40 Degrees (Celcius)
Operating Temp. Range	1MPa
Operating Vacuum Level	−100kPa	−

Fit Soft Tube Insert into the tube for water service.Soft Tube Inserts
