ConfigureTạo

Clear AllQuet sạch tât cả

Part number has not been determine

(1,530 Part Numbers Available)
Configure Remaining SpecificationsĐịnh cấu hình các thông số còn lại

Part Number CompleteĐã hoàn thành

SGGA6A-[30-2000/1]
loading

Specification/DimensionsĐặc điểm kỹ thuật / Kích thướcĐặc điểm kỹ thuật / Kích thước

  • Material

    • SUS304TP
    • SUS316TP
    • STPG370(Sch40)
    • STPG370(Sch80)
    • SGP
    • SGP (White)

    ClearTrống

  • Shape

    • F (One End Threaded, One End 45ﾟ Cut)
    • G (One End 45ﾟ Cut)
    • A (One End Threaded, One End Tapped)
    • C (Straight)
    • D (One End Threaded)
    • E (One End Tapped)

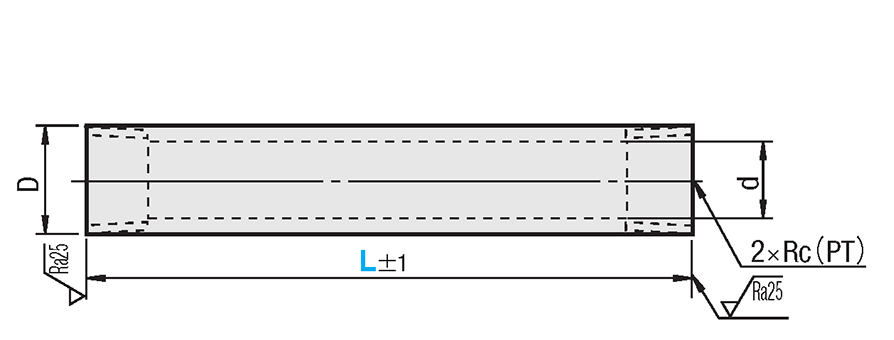

    • P (Both Ends Threaded)
    • W (Both Ends Tapped)

    ClearTrống

  • No. (O.D. D)(Ø)

    • 6A (10.5)
    • 8A(13.8)
    • 10A(17.3)
    • 15A(21.7)
    • 20A(27.2)
    • 25A(34.0)
    • 32A(42.7)
    • 40A(48.6)
    • 50A(60.5)

    ClearTrống

  • Paint Color

    • B (Black)
    • BL (Blue)
    • BR (Brown)
    • No
    • R (Dark Red)
    • W (White)
    • Y (Light Yellow)

    ClearTrống

  • Overall Length L(mm)

    • 500

     [30-2000/1mm Unit(s)]

    ClearTrống

  • type

    • SGGA
    • SGGC
    • SGGD
    • SGGE
    • SGGF
    • SGGG
    • SGGP
    • SGGW
    • SGHPA
    • SGHPC
    • SGHPD
    • SGHPE
    • SGHPF
    • SGHPG
    • SGHPP
    • SGHPW
    • SGPA
    • SGPC
    • SGPD
    • SGPE
    • SGPF
    • SGPG
    • SGPP
    • SGPPK
    • SGPW
    • STPGA
    • STPGC
    • STPGD
    • STPGE
    • STPGF
    • STPGG
    • STPGP
    • STPGW
    • SUTA
    • SUTC
    • SUTD
    • SUTE
    • SUTF
    • SUTG
    • SUTP
    • SUTPK
    • SUTS□
    • SUTW

    ClearTrống

  • CADCAD

    • 2D
    • 3D

    ClearTrống

Days to ShipSố ngày giao hàng

    • Alltất cả các
    • Same day
    • 4 Day(s) or Less
    • 6 Day(s) or Less
    • 7 Day(s) or Less
    • 8 Day(s) or Less

    ClearTrống

Specify AlterationsChỉ định thay đổi

Steel Pipes/Plain/Metric Thread

Steel Pipes/Plain/Metric Thread

Click this image to zoom it.Nhấp vào hình ảnh này để phóng to.

Move the mouse over or click the image to zoom

  • Steel Pipes/Plain/Metric Thread
  • Steel Pipes/Plain/Metric Thread
  • Steel Pipes/Plain/Metric Thread
  • Steel Pipes/Plain/Metric Thread
  • Steel Pipes/Plain/Metric Thread
  • Steel Pipes/Plain/Metric Thread
  • Steel Pipes/Plain/Metric Thread
  • Steel Pipes/Plain/Metric Thread
  • Steel Pipes/Plain/Metric Thread
  • Steel Pipes/Plain/Metric Thread
  • Steel Pipes/Plain/Metric Thread
  • Volume Discount
You can add up to 6 items per a category to the compare list.

Brand :

MISUMI

MISUMI

Part Number :
1,530 Part Numbers Available

SGGA6A-[30-2000/1]

SGGA6A-B-[30-1500/1]

SGGA6A-BL-[30-1500/1]

SGGA6A-BR-[30-1500/1]

SGGA6A-R-[30-1500/1]

SGGA6A-W-[30-1500/1]

SGGA6A-Y-[30-1500/1]

SGGA8A-[40-2000/1]

SGGA8A-B-[40-1500/1]

SGGA8A-BL-[40-1500/1]

SGGA8A-BR-[40-1500/1]

SGGA8A-R-[40-1500/1]

SGGA8A-W-[40-1500/1]

SGGA8A-Y-[40-1500/1]

SGGA10A-[40-2000/1]

SGGA10A-B-[40-1500/1]

SGGA10A-BL-[40-1500/1]

SGGA10A-BR-[40-1500/1]

SGGA10A-R-[40-1500/1]

SGGA10A-W-[40-1500/1]

SGGA6A-[30-2000/1]
SGGA6A-[30-2000/1]

Copy Part Number URL to Clipboard

The part number URL has been copied into your clipboard.

Close

loading
  • Order Qty :
  • Price :
    ---
  • Total Price :
    ---
  • Days to ship :
    ---

Select part number to Order Now/ Add to Cart

(i)

Caution

thận trọng

  • There may be rust on the inner surface of SGG_.

PDFP.2-1265-2014

Unit examples related to this product
Warm Water Testing Tank
View other unit examplesXem các ví dụ đơn vị khác
CAD Download
My Components
My Components
Similar ProductsSimilar Products
Product DetailProduct Detail

Product Description

[Features]·You can specify the L dimension length for the L dimension specification type. ·L dimension fixed type, C shape, unpainted only.



Part Number[ M ] MaterialStandardUsage[ S ] Surface Treatment
SGG_SGPJIS G3452Low Operating Pressure Steam - Water - Oil - Gas - Pneumatic Hollow-
SGP_ _SGPWJIS G3442Hollows for draining water - air conditioning etc.Zinc Plating
SUT_ _SUS304TPJIS G3459Corrosion Resistant Hollows - Low Temperature - High Temperature-
SUTS_SUS316TPJIS G3459-
STPG_STPG370 (Sch40)JIS G3454Pressure Pipes to be used under 350°C-
SGHP_STPG370 (Sch80)JIS G3454-

Specifications

Part Number
SUTPK10A
Part Number-Coating Color-L
SGGP8A
SUTD15A

-
BR		-
-		200
500

■L Dimension Selectable (C-Shape / Unpainted)
Part NumberLSGPPKSUTPKSGPPK SUTPK
Unit PriceVolume Discount RateUnit PriceVolume Discount Rate
TypeNo.DdDdQty. 1~9Qty. 10~Qty. 1~9Qty. 10~
SGPPK
(SGPW)
SUTPK
(SUS304TP)		6A500--10.55.7 - -
8A13.89.213.87.8
10A17.312.717.310.9
15A21.716.121.716.1
20A27.221.627.221.4
25A34.027.634.027.2

Alterations


Part Number

  • Incomplete part number.
    Please use left hand selections to complete a part number.    Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...Tải…
30
45
60
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. NextKế tiếp >>
Part Number
SGGA6A-[30-2000/1]
SGGA6A-B-[30-1500/1]
SGGA6A-BL-[30-1500/1]
SGGA6A-BR-[30-1500/1]
SGGA6A-R-[30-1500/1]
SGGA6A-W-[30-1500/1]
SGGA6A-Y-[30-1500/1]
SGGA8A-[40-2000/1]
SGGA8A-B-[40-1500/1]
SGGA8A-BL-[40-1500/1]
SGGA8A-BR-[40-1500/1]
SGGA8A-R-[40-1500/1]
SGGA8A-W-[40-1500/1]
SGGA8A-Y-[40-1500/1]
SGGA10A-[40-2000/1]
SGGA10A-B-[40-1500/1]
SGGA10A-BL-[40-1500/1]
SGGA10A-BR-[40-1500/1]
SGGA10A-R-[40-1500/1]
SGGA10A-W-[40-1500/1]
SGGA10A-Y-[40-1500/1]
SGGA15A-[50-2000/1]
SGGA15A-B-[50-1500/1]
SGGA15A-BL-[50-1500/1]
SGGA15A-BR-[50-1500/1]
SGGA15A-R-[50-1500/1]
SGGA15A-W-[50-1500/1]
SGGA15A-Y-[50-1500/1]
SGGA20A-[50-2000/1]
SGGA20A-B-[50-1500/1]
SGGA20A-BL-[50-1500/1]
SGGA20A-BR-[50-1500/1]
SGGA20A-R-[50-1500/1]
SGGA20A-W-[50-1500/1]
SGGA20A-Y-[50-1500/1]
SGGA25A-[60-2000/1]
SGGA25A-B-[60-1500/1]
SGGA25A-BL-[60-1500/1]
SGGA25A-BR-[60-1500/1]
SGGA25A-R-[60-1500/1]
SGGA25A-W-[60-1500/1]
SGGA25A-Y-[60-1500/1]
SGGA32A-[60-2000/1]
SGGA40A-[60-2000/1]
SGGC6A-[30-2000/1]
SGGC6A-B-[30-1500/1]
SGGC6A-BL-[30-1500/1]
SGGC6A-BR-[30-1500/1]
SGGC6A-R-[30-1500/1]
SGGC6A-W-[30-1500/1]
SGGC6A-Y-[30-1500/1]
SGGC8A-[40-2000/1]
SGGC8A-B-[40-1500/1]
SGGC8A-BL-[40-1500/1]
SGGC8A-BR-[40-1500/1]
SGGC8A-R-[40-1500/1]
SGGC8A-W-[40-1500/1]
SGGC8A-Y-[40-1500/1]
SGGC10A-[40-2000/1]
SGGC10A-B-[40-1500/1]
Part NumberPriceMinimum Order Qty.Volume DiscountDays to ShipSố ngày giao hàngMaterial Shape No. (O.D. D)
(Ø) 		Paint Color Overall Length L
(mm)

-

1 Piece(s) 6 Day(s) or more SGPA (One End Threaded, One End Tapped)6A (10.5)No30 ～ 2000

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)6A (10.5)B (Black)30 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)6A (10.5)BL (Blue)30 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)6A (10.5)BR (Brown)30 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)6A (10.5)R (Dark Red)30 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)6A (10.5)W (White)30 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)6A (10.5)Y (Light Yellow)30 ～ 1500

-

1 Piece(s) 6 Day(s) or more SGPA (One End Threaded, One End Tapped)8A(13.8)No40 ～ 2000

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)8A(13.8)B (Black)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)8A(13.8)BL (Blue)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)8A(13.8)BR (Brown)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)8A(13.8)R (Dark Red)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)8A(13.8)W (White)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)8A(13.8)Y (Light Yellow)40 ～ 1500

-

1 Piece(s) 6 Day(s) or more SGPA (One End Threaded, One End Tapped)10A(17.3)No40 ～ 2000

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)10A(17.3)B (Black)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)10A(17.3)BL (Blue)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)10A(17.3)BR (Brown)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)10A(17.3)R (Dark Red)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)10A(17.3)W (White)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)10A(17.3)Y (Light Yellow)40 ～ 1500

-

1 Piece(s) 6 Day(s) or more SGPA (One End Threaded, One End Tapped)15A(21.7)No50 ～ 2000

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)15A(21.7)B (Black)50 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)15A(21.7)BL (Blue)50 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)15A(21.7)BR (Brown)50 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)15A(21.7)R (Dark Red)50 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)15A(21.7)W (White)50 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)15A(21.7)Y (Light Yellow)50 ～ 1500

-

1 Piece(s) 6 Day(s) or more SGPA (One End Threaded, One End Tapped)20A(27.2)No50 ～ 2000

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)20A(27.2)B (Black)50 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)20A(27.2)BL (Blue)50 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)20A(27.2)BR (Brown)50 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)20A(27.2)R (Dark Red)50 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)20A(27.2)W (White)50 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)20A(27.2)Y (Light Yellow)50 ～ 1500

-

1 Piece(s) 6 Day(s) or more SGPA (One End Threaded, One End Tapped)25A(34.0)No60 ～ 2000

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)25A(34.0)B (Black)60 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)25A(34.0)BL (Blue)60 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)25A(34.0)BR (Brown)60 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)25A(34.0)R (Dark Red)60 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)25A(34.0)W (White)60 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPA (One End Threaded, One End Tapped)25A(34.0)Y (Light Yellow)60 ～ 1500

-

1 Piece(s) 6 Day(s) or more SGPA (One End Threaded, One End Tapped)32A(42.7)No60 ～ 2000

-

1 Piece(s) 6 Day(s) or more SGPA (One End Threaded, One End Tapped)40A(48.6)No60 ～ 2000

-

1 Piece(s) 6 Day(s) or more SGPC (Straight)6A (10.5)No30 ～ 2000

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)6A (10.5)B (Black)30 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)6A (10.5)BL (Blue)30 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)6A (10.5)BR (Brown)30 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)6A (10.5)R (Dark Red)30 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)6A (10.5)W (White)30 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)6A (10.5)Y (Light Yellow)30 ～ 1500

-

1 Piece(s) 6 Day(s) or more SGPC (Straight)8A(13.8)No40 ～ 2000

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)8A(13.8)B (Black)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)8A(13.8)BL (Blue)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)8A(13.8)BR (Brown)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)8A(13.8)R (Dark Red)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)8A(13.8)W (White)40 ～ 1500

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)8A(13.8)Y (Light Yellow)40 ～ 1500

-

1 Piece(s) 6 Day(s) or more SGPC (Straight)10A(17.3)No40 ～ 2000

-

1 Piece(s) 8 Day(s) or more SGPC (Straight)10A(17.3)B (Black)40 ～ 1500

Loading...Tải…

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. NextKế tiếp >>

More Information



[ ! ]L Dimensions in ( ) are for F and G Shape. L Dimensions 1501 ~ 2000 is available for SGG_, SGP_ and SUT_ only (Except No.50A).
[ ! ]Painted pipes are available for No.6A~25A (L dimension 1500 or less) of SGG_, SUT_, STPG_ and SGHP_. [ ! ]The shapes A, W and E are not available for No.50A.
[ ! ]Painted Hollows are not available for L dimension 1501~2000.


MISUMI Unit Example related to this product

Try to Find Other Examples

back next

About MISUMIVề Misumi

About this WebsiteVề trang Web này

Useful ToolsCác công cụ hữu ích

Customer ServiceDịch vụ chăm sóc khách hàng

MISUMI Contact Monday to Saturday: 8:00 am - 5:00 pm Order cut off time is 5:00 pm Thứ 2 đến Thứ 7: 8 giờ sáng đến 5 giờ chiều Hạn chót đặt hàng là 5 giờ chiều

  • Tel:Số điện thoại:0222-361-1555
  • Fax:Số Fax:0222-361-2555
  • InquiryYêu cầu

MISUMI APP

MISUMI APP QR

Install MISUMI APP

Mobile View Xem trên điện thoại

MISUMI Vietnam Company Limited, Legal Representative: Tomohiro Watanabe,
phone: 0222-361-1555, e-mail: cs@misumi.com.vn, Enterprise Code: 0107514576,
Date of Issuance: 22 July 2016, Place of Issuance: Bac Ninh, Business Certificate No. 6573041568-KD dated 27 September 2016 issued by the People's Committee of Bac Ninh

Công ty TNHH MISUMI Việt Nam, Đại diện theo pháp luật: Tomohiro Watanabe,
Điện thoại: 0222-361-1555, e-mail: cs@misumi.com.vn, Mã số doanh nghiệp: 0107514576,
ngày cấp 22/7/2016, nơi cấp: Bắc Ninh, Giấy phép kinh doanh số: 6573041568-KD ngày cấp 27/9/2016 bởi UBND tỉnh Bắc Ninh

online.gov.vn

Copyright © MISUMI Corporation All Rights Reserved.
