ConfigureTạo

Part number has not been determine

(102 Part Numbers Available)

Configure Remaining SpecificationsĐịnh cấu hình các thông số còn lại

Part Number CompleteĐã hoàn thành

FXEB6-[12-60/1]-F[5-100/1]-M3

Shaft Diameter (mm) Material Surface Treatment Material Flange Shape H Dimension Flange Size F Screw Dia. Selection [M] Y type CAD Days to Ship

Specification/DimensionsĐặc điểm kỹ thuật / Kích thướcĐặc điểm kỹ thuật / Kích thước

Shaft Diameter (mm)(mm)
6

8

10

12

13

15

16

17

18

20

22

25

30

35

40

50
ClearTrống
Material
- Steel
- Stainless Steel
ClearTrống
Surface Treatment
- Not Provided
- Black Oxide
- Electroless Nickel Plating
ClearTrống
Material
- S45C Equivalent
- SUS304
ClearTrống
Flange Shape
- Compact Type
- Round Type
ClearTrống
H Dimension(mm)
26

28

32

36

38

40

42

44

46

48

50

54

62

70

80

90
ClearTrống
Flange Size
- Standard
- Wide
ClearTrống
F(mm)
[5-150/1mm Unit(s)]
ClearTrống
Screw Dia. Selection [M](mm)
3

4

5

6

8

10

12

16

20
ClearTrống
Y(mm)
[12-75/1mm Unit(s)]
ClearTrống
type
- FXEB
- FXFB
- PFXEB
- PFXFB
- SFXEB
- SFXFB
ClearTrống
CADCAD
- 2D
- 3D
ClearTrống

Days to ShipSố ngày giao hàng

Alltất cả các

5 Day(s) or Less

9 Day(s) or Less
ClearTrống

Specify AlterationsChỉ định thay đổi

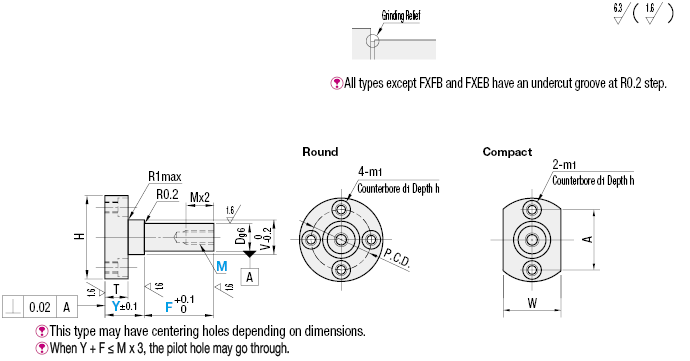

Cantilever Shafts - Shouldered - Screw Mount

Name: Cantilever Shafts - Shouldered - Screw Mount
Brand: MISUMI
Availability: PreOrder

Brand :

MISUMI

Part Number :

FXEB6-[12-60/1]-F[5-100/1]-M3

FXEB8-[12-60/1]-F[5-100/1]-M4

FXEB10-[12-60/1]-F[5-100/1]-M[4,5,6]

FXEB12-[12-60/1]-F[10-150/1]-M[5,6,8]

FXEB13-[12-60/1]-F[10-150/1]-M[5,6,8]

FXEB15-[12-60/1]-F[10-150/1]-M[6,8,10]

FXEB16-[12-60/1]-F[10-150/1]-M[6,8,10]

FXEB17-[12-60/1]-F[10-150/1]-M[6,8,10]

FXEB18-[12-60/1]-F[10-150/1]-M[6,8,10]

FXEB20-[17-75/1]-F[10-150/1]-M[6,8,10,12]

FXEB22-[17-75/1]-F[10-150/1]-M[6,8,10,12]

FXEB25-[17-75/1]-F[10-150/1]-M[8,10,12,16]

FXEB30-[17-75/1]-F[10-150/1]-M[8,10,12,16,20]

FXEB35-[17-75/1]-F[10-150/1]-M[8,10,12,16,20]

FXEB40-[20-75/1]-F[10-150/1]-M[12,16,20]

FXEB50-[20-75/1]-F[10-150/1]-M[16,20]

FXFB6-[12-60/1]-F[5-100/1]-M3

FXFB6A-[12-60/1]-F[5-100/1]-M3

FXFB8-[12-60/1]-F[5-100/1]-M4

FXFB8A-[12-60/1]-F[5-100/1]-M4

FXEB6-[12-60/1]-F[5-100/1]-M3

Order Qty :
Price :

---
Total Price :

---
Days to ship :

---

Select part number to Order Now/ Add to Cart

CAD Download

Product Description

[Features]This is a cantilever shaft that can be firmly fixed to the mounting surface with the flange.

Product TOP

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.

Loading...Tải…

: 30; 45; 60

Part Number
FXEB6-[12-60/1]-F[5-100/1]-M3
FXEB8-[12-60/1]-F[5-100/1]-M4
FXEB10-[12-60/1]-F[5-100/1]-M[4,5,6]
FXEB12-[12-60/1]-F[10-150/1]-M[5,6,8]
FXEB13-[12-60/1]-F[10-150/1]-M[5,6,8]
FXEB15-[12-60/1]-F[10-150/1]-M[6,8,10]
FXEB16-[12-60/1]-F[10-150/1]-M[6,8,10]
FXEB17-[12-60/1]-F[10-150/1]-M[6,8,10]
FXEB18-[12-60/1]-F[10-150/1]-M[6,8,10]
FXEB20-[17-75/1]-F[10-150/1]-M[6,8,10,12]
FXEB22-[17-75/1]-F[10-150/1]-M[6,8,10,12]
FXEB25-[17-75/1]-F[10-150/1]-M[8,10,12,16]
FXEB30-[17-75/1]-F[10-150/1]-M[8,10,12,16,20]
FXEB35-[17-75/1]-F[10-150/1]-M[8,10,12,16,20]
FXEB40-[20-75/1]-F[10-150/1]-M[12,16,20]
FXEB50-[20-75/1]-F[10-150/1]-M[16,20]
FXFB6-[12-60/1]-F[5-100/1]-M3
FXFB6A-[12-60/1]-F[5-100/1]-M3
FXFB8-[12-60/1]-F[5-100/1]-M4
FXFB8A-[12-60/1]-F[5-100/1]-M4
FXFB10-[12-60/1]-F[5-100/1]-M[4,5,6]
FXFB10A-[12-60/1]-F[5-100/1]-M[4,5,6]
FXFB12-[12-60/1]-F[10-150/1]-M[5,6,8]
FXFB13-[12-60/1]-F[10-150/1]-M[5,6,8]
FXFB15-[12-60/1]-F[10-150/1]-M[6,8,10]
FXFB16-[12-60/1]-F[10-150/1]-M[6,8,10]
FXFB17-[12-60/1]-F[10-150/1]-M[6,8,10]
FXFB18-[12-60/1]-F[10-150/1]-M[6,8,10]
FXFB20-[17-75/1]-F[10-150/1]-M[6,8,10,12]
FXFB22-[17-75/1]-F[10-150/1]-M[6,8,10,12]
FXFB25-[17-75/1]-F[10-150/1]-M[8,10,12,16]
FXFB30-[17-75/1]-F[10-150/1]-M[8,10,12,16,20]
FXFB35-[17-75/1]-F[10-150/1]-M[8,10,12,16,20]
FXFB40-[20-75/1]-F[10-150/1]-M[12,16,20]
FXFB50-[20-75/1]-F[10-150/1]-M[16,20]
PFXEB6-[12-60/1]-F[5-100/1]-M3
PFXEB8-[12-60/1]-F[5-100/1]-M4
PFXEB10-[12-60/1]-F[5-100/1]-M[4,5,6]
PFXEB12-[12-60/1]-F[10-150/1]-M[5,6,8]
PFXEB13-[12-60/1]-F[10-150/1]-M[5,6,8]
PFXEB15-[12-60/1]-F[10-150/1]-M[6,8,10]
PFXEB16-[12-60/1]-F[10-150/1]-M[6,8,10]
PFXEB17-[12-60/1]-F[10-150/1]-M[6,8,10]
PFXEB18-[12-60/1]-F[10-150/1]-M[6,8,10]
PFXEB20-[17-75/1]-F[10-150/1]-M[6,8,10,12]
PFXEB22-[17-75/1]-F[10-150/1]-M[6,8,10,12]
PFXEB25-[17-75/1]-F[10-150/1]-M[8,10,12,16]
PFXEB30-[17-75/1]-F[10-150/1]-M[8,10,12,16,20]
PFXEB35-[17-75/1]-F[10-150/1]-M[8,10,12,16,20]
PFXEB40-[20-75/1]-F[10-150/1]-M[12,16,20]
PFXEB50-[20-75/1]-F[10-150/1]-M[16,20]
PFXFB6-[12-60/1]-F[5-100/1]-M3
PFXFB6A-[12-60/1]-F[5-100/1]-M3
PFXFB8-[12-60/1]-F[5-100/1]-M4
PFXFB8A-[12-60/1]-F[5-100/1]-M4
PFXFB10-[12-60/1]-F[5-100/1]-M[4,5,6]
PFXFB10A-[12-60/1]-F[5-100/1]-M[4,5,6]
PFXFB12-[12-60/1]-F[10-150/1]-M[5,6,8]
PFXFB13-[12-60/1]-F[10-150/1]-M[5,6,8]
PFXFB15-[12-60/1]-F[10-150/1]-M[6,8,10]

Price	Minimum Order Qty.	Days to ShipSố ngày giao hàng	RoHS	Shaft Diameter (mm) (mm)	Material	Surface Treatment	Material	Flange Shape	H Dimension (mm)	Flange Size	F (mm)	Screw Dia. Selection [M] (mm)	Y (mm)
-	1 Piece(s)	9 Day(s)	10	6	Steel	Black Oxide	S45C Equivalent	Compact Type	26	Standard	5 ～ 100	3	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	8	Steel	Black Oxide	S45C Equivalent	Compact Type	28	Standard	5 ～ 100	4	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	10	Steel	Black Oxide	S45C Equivalent	Compact Type	32	Standard	5 ～ 100	4 ～ 6	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	12	Steel	Black Oxide	S45C Equivalent	Compact Type	36	Standard	10 ～ 150	5 ～ 8	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	13	Steel	Black Oxide	S45C Equivalent	Compact Type	38	Standard	10 ～ 150	5 ～ 8	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	15	Steel	Black Oxide	S45C Equivalent	Compact Type	40	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	16	Steel	Black Oxide	S45C Equivalent	Compact Type	42	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	17	Steel	Black Oxide	S45C Equivalent	Compact Type	44	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	18	Steel	Black Oxide	S45C Equivalent	Compact Type	46	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	5 Day(s) or more	10	20	Steel	Black Oxide	S45C Equivalent	Compact Type	48	Standard	10 ～ 150	6 ～ 12	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	22	Steel	Black Oxide	S45C Equivalent	Compact Type	50	Standard	10 ～ 150	6 ～ 12	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	25	Steel	Black Oxide	S45C Equivalent	Compact Type	54	Standard	10 ～ 150	8 ～ 16	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	30	Steel	Black Oxide	S45C Equivalent	Compact Type	62	Standard	10 ～ 150	8 ～ 20	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	35	Steel	Black Oxide	S45C Equivalent	Compact Type	70	Standard	10 ～ 150	8 ～ 20	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	40	Steel	Black Oxide	S45C Equivalent	Compact Type	80	Standard	10 ～ 150	12 ～ 20	20 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	50	Steel	Black Oxide	S45C Equivalent	Compact Type	90	Standard	10 ～ 150	16 ～ 20	20 ～ 75
-	1 Piece(s)	9 Day(s)	10	6	Steel	Black Oxide	S45C Equivalent	Round Type	26	Standard	5 ～ 100	3	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	6	Steel	Black Oxide	S45C Equivalent	Round Type	32	Wide	5 ～ 100	3	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	8	Steel	Black Oxide	S45C Equivalent	Round Type	28	Standard	5 ～ 100	4	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	8	Steel	Black Oxide	S45C Equivalent	Round Type	36	Wide	5 ～ 100	4	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	10	Steel	Black Oxide	S45C Equivalent	Round Type	32	Standard	5 ～ 100	4 ～ 6	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	10	Steel	Black Oxide	S45C Equivalent	Round Type	40	Wide	5 ～ 100	4 ～ 6	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	12	Steel	Black Oxide	S45C Equivalent	Round Type	36	Standard	10 ～ 150	5 ～ 8	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	13	Steel	Black Oxide	S45C Equivalent	Round Type	38	Standard	10 ～ 150	5 ～ 8	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	15	Steel	Black Oxide	S45C Equivalent	Round Type	40	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	16	Steel	Black Oxide	S45C Equivalent	Round Type	42	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	17	Steel	Black Oxide	S45C Equivalent	Round Type	44	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	18	Steel	Black Oxide	S45C Equivalent	Round Type	46	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	5 Day(s) or more	10	20	Steel	Black Oxide	S45C Equivalent	Round Type	48	Standard	10 ～ 150	6 ～ 12	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	22	Steel	Black Oxide	S45C Equivalent	Round Type	50	Standard	10 ～ 150	6 ～ 12	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	25	Steel	Black Oxide	S45C Equivalent	Round Type	54	Standard	10 ～ 150	8 ～ 16	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	30	Steel	Black Oxide	S45C Equivalent	Round Type	62	Standard	10 ～ 150	8 ～ 20	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	35	Steel	Black Oxide	S45C Equivalent	Round Type	70	Standard	10 ～ 150	8 ～ 20	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	40	Steel	Black Oxide	S45C Equivalent	Round Type	80	Standard	10 ～ 150	12 ～ 20	20 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	50	Steel	Black Oxide	S45C Equivalent	Round Type	90	Standard	10 ～ 150	16 ～ 20	20 ～ 75
-	1 Piece(s)	9 Day(s)	10	6	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	26	Standard	5 ～ 100	3	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	8	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	28	Standard	5 ～ 100	4	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	10	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	32	Standard	5 ～ 100	4 ～ 6	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	12	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	36	Standard	10 ～ 150	5 ～ 8	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	13	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	38	Standard	10 ～ 150	5 ～ 8	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	15	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	40	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	16	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	42	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	17	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	44	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	18	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	46	Standard	10 ～ 150	6 ～ 10	12 ～ 60
-	1 Piece(s)	5 Day(s) or more	10	20	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	48	Standard	10 ～ 150	6 ～ 12	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	22	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	50	Standard	10 ～ 150	6 ～ 12	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	25	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	54	Standard	10 ～ 150	8 ～ 16	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	30	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	62	Standard	10 ～ 150	8 ～ 20	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	35	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	70	Standard	10 ～ 150	8 ～ 20	17 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	40	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	80	Standard	10 ～ 150	12 ～ 20	20 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	50	Steel	Electroless Nickel Plating	S45C Equivalent	Compact Type	90	Standard	10 ～ 150	16 ～ 20	20 ～ 75
-	1 Piece(s)	9 Day(s)	10	6	Steel	Electroless Nickel Plating	S45C Equivalent	Round Type	26	Standard	5 ～ 100	3	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	6	Steel	Electroless Nickel Plating	S45C Equivalent	Round Type	32	Wide	5 ～ 100	3	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	8	Steel	Electroless Nickel Plating	S45C Equivalent	Round Type	28	Standard	5 ～ 100	4	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	8	Steel	Electroless Nickel Plating	S45C Equivalent	Round Type	36	Wide	5 ～ 100	4	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	10	Steel	Electroless Nickel Plating	S45C Equivalent	Round Type	32	Standard	5 ～ 100	4 ～ 6	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	10	Steel	Electroless Nickel Plating	S45C Equivalent	Round Type	40	Wide	5 ～ 100	4 ～ 6	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	12	Steel	Electroless Nickel Plating	S45C Equivalent	Round Type	36	Standard	10 ～ 150	5 ～ 8	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	13	Steel	Electroless Nickel Plating	S45C Equivalent	Round Type	38	Standard	10 ～ 150	5 ～ 8	12 ～ 60
-	1 Piece(s)	9 Day(s)	10	15	Steel	Electroless Nickel Plating	S45C Equivalent	Round Type	40	Standard	10 ～ 150	6 ～ 10	12 ～ 60

Loading...Tải…

Basic InformationThông tin cơ bản

Shaft Retaining Method	Flanged	Retainer Shape	Stepped, Wrench Flats	Bearing Retaining Method	Tapped (Screw)
Hardness	Hardness Not Spec-designed

The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..

MISUMI Unit Example related to this product

back next

Top of the page

About MISUMIVề Misumi

About this WebsiteVề trang Web này

Useful ToolsCác công cụ hữu ích

Customer ServiceDịch vụ chăm sóc khách hàng

MISUMI Contact Monday to Saturday: 8:00 am - 5:00 pm Order cut off time is 5:00 pm Thứ 2 đến Thứ 7: 8 giờ sáng đến 5 giờ chiều Hạn chót đặt hàng là 5 giờ chiều

Tel:Số điện thoại:0222-361-1555
Fax:Số Fax:0222-361-2555
InquiryYêu cầu

MISUMI APP

Install MISUMI APP

MISUMI Vietnam Company Limited, Legal Representative: Tomohiro Watanabe,
phone: 0222-361-1555, e-mail: cs@misumi.com.vn, Enterprise Code: 0107514576,
Date of Issuance: 22 July 2016, Place of Issuance: Bac Ninh, Business Certificate No. 6573041568-KD dated 27 September 2016 issued by the People's Committee of Bac Ninh

Công ty TNHH MISUMI Việt Nam, Đại diện theo pháp luật: Tomohiro Watanabe,
Điện thoại: 0222-361-1555, e-mail: cs@misumi.com.vn, Mã số doanh nghiệp: 0107514576,
ngày cấp 22/7/2016, nơi cấp: Bắc Ninh, Giấy phép kinh doanh số: 6573041568-KD ngày cấp 27/9/2016 bởi UBND tỉnh Bắc Ninh

Search by Category / Brand Tìm theo danh mục, nhãn hiệu

Search by Category Tìm theo danh mục

How can we improve?

ConfigureTạo

Specification/DimensionsĐặc điểm kỹ thuật / Kích thướcĐặc điểm kỹ thuật / Kích thước

Shaft Diameter (mm)(mm)

Material

Surface Treatment

Material

Flange Shape

H Dimension(mm)

Flange Size

F(mm)

Screw Dia. Selection [M](mm)

Y(mm)

type

CADCAD

Days to ShipSố ngày giao hàng

Specify AlterationsChỉ định thay đổi

Cantilever Shafts - Shouldered - Screw Mount

Copy Part Number URL to Clipboard

Product Description

Part Number

Basic InformationThông tin cơ bản

MISUMI Unit Example related to this product

About MISUMIVề Misumi

About this WebsiteVề trang Web này

Useful ToolsCác công cụ hữu ích

Customer ServiceDịch vụ chăm sóc khách hàng

MISUMI Contact Monday to Saturday: 8:00 am - 5:00 pm Order cut off time is 5:00 pm Thứ 2 đến Thứ 7: 8 giờ sáng đến 5 giờ chiều Hạn chót đặt hàng là 5 giờ chiều
